Part Number: M37736MHLXXXHP
Description: The M37736MHLXXXHP is a single-chip microcomputer using the 7700 Family core. This single-chip microco...
- Table of contents:
M37736MHLXXXHP
-
Suppliers
DataSheet
General Description
M37736MHLXXXHP General Description
The M37736MHLXXXHP is a single-chip microcomputer using the 7700 Family core. This single-chip microcomputer has a CPU and a bus interface unit. The CPU is a 16-bit parallel processor that can be an 8-bit parallel processor, and the bus interface unit enhances the memory access efficiency to execute instructions fast. This microcomputer also includes a 32 kHz oscillation circuit, in addition to the ROM, RAM, multiple-function timers, serial I/O, A-D converter, and so on.
Its strong points are the low power dissipation, the low supply voltage,and the small package.
In the M37736MHLXXXHP, as the multiplex method of the external bus, either of 2 types can be selected.
M37736MHLXXXHP Maximum Ratings
|
Symbol |
Parameter |
Conditions |
Ratings |
Units |
|
Vcc |
Power source voltage |
|
0.3 to +7 |
V |
|
AVcc |
Analog power source voltage |
|
0.3 to +7 |
V |
|
VI |
Input voltage RESET, CNVss, BYTE |
|
0.3 to +12 |
V |
|
VI |
Input voltage P00 P07, P10 P17, P20P27, |
|
0.3 to Vcc + 0.3 |
V |
|
VO |
Output voltage P00 P07, P10 P17, P20 P27,P30 P33, P40 P47, P50 P57, |
|
0.3 to Vcc + 0.3 |
V |
|
Pd |
Power dissipation |
Ta = 25 °C |
200 |
mW |
|
Topr |
Operating temperature |
|
40 to +85 |
°C |
|
Tstg |
Storage temperature |
|
65 to +150 |
°C |
M37736MHLXXXHP Features
. Number of basic instructions .................................................. 103
. Memory size ROM ................................................. 124 Kbytes
RAM ................................................ 3968 bytes
. Instruction execution time
. The fastest instruction at 12 MHz frequency ...................... 333 ns
. Single power supply ...................................................... 2.75.5 V
. Low power dissipation (At 3 V supply voltage, 12 MHz frequency)
............................................ 9 mW (Typ.)
. Interrupts ............................................................ 19 types, 7 levels
. Multiple-function 16-bit timer ................................................. 5 + 3
. Serial I/O (UART or clock synchronous) ..................................... 3
. 10-bit A-D converter .............................................. 8-channel inputs
. 12-bit watchdog timer
. Programmable input/output, output
. (ports P0, P1, P2, P3, P4, P5, P6, P7, P8, P9, P10) ............... 84
. Clock generating circuit ........................................ 2 circuits built-in
. Small package ..................... 100-pin plastic molded fine-pitch QFP
. (100P6Q-A;0.5 mm lead pitch)
. Memory size ROM ................................................. 124 Kbytes
RAM ................................................ 3968 bytes
. Instruction execution time
. The fastest instruction at 12 MHz frequency ...................... 333 ns
. Single power supply ...................................................... 2.75.5 V
. Low power dissipation (At 3 V supply voltage, 12 MHz frequency)
............................................ 9 mW (Typ.)
. Interrupts ............................................................ 19 types, 7 levels
. Multiple-function 16-bit timer ................................................. 5 + 3
. Serial I/O (UART or clock synchronous) ..................................... 3
. 10-bit A-D converter .............................................. 8-channel inputs
. 12-bit watchdog timer
. Programmable input/output, output
. (ports P0, P1, P2, P3, P4, P5, P6, P7, P8, P9, P10) ............... 84
. Clock generating circuit ........................................ 2 circuits built-in
. Small package ..................... 100-pin plastic molded fine-pitch QFP
. (100P6Q-A;0.5 mm lead pitch)
M37736MHLXXXHP Typical Application
Control devices for general commercial equipment such as office automation, office equipment, personal information equipment, and others.Control devices for general industrial equipment such as communication equipment, and others.

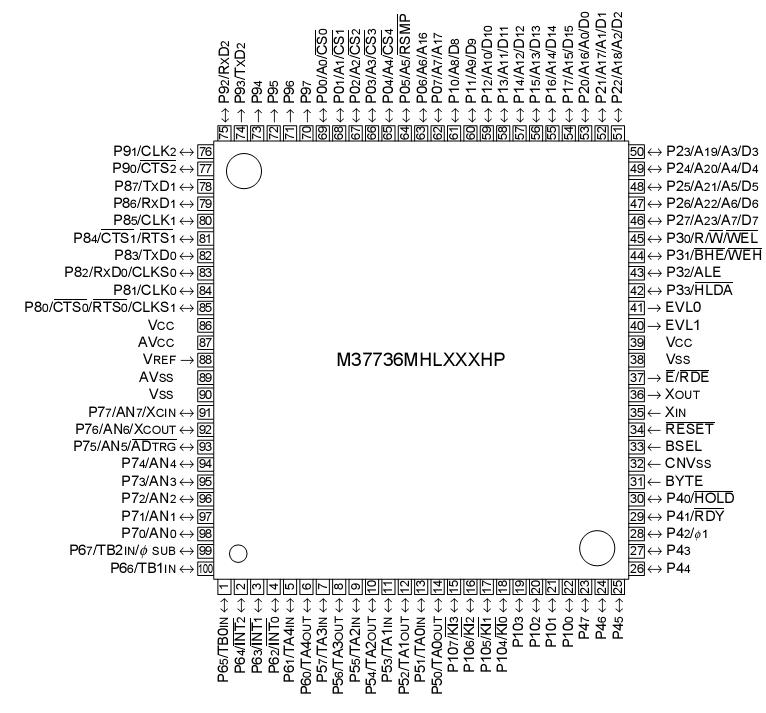

M37736MHLXXXHP Connection Diagram
M37736MHLXXXHP
PDF/DataSheet Download
- Datasheet: M37736MHLXXXHP
- File Size: 551491 KB
- Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
- Click here to Download
