Part Number: M44C510E
Description: The M44C510E is a member of the TEMIC Semiconductors family of 4-bit single-chip microcontrollers. It contains ROM, RAM...
- Table of contents:
M44C510E
-
Suppliers
DataSheet
General Description
M44C510E General Description
The M44C510E is a member of the TEMIC Semiconductors family of 4-bit single-chip microcontrollers. It contains ROM, RAM, up to 34 digital I/O pins, up to 10 maskable external interrupt sources, 4 maskable internal interrupts, a watchdog timer, interval timer, 2 x 8-bit multifunction timer/counter module and a versatile software configurable on-chip system clock module.
M44C510E Maximum Ratings
| Parameters | Symbol | Value | Unit |
| Supply voltage | VDD | -0.3 to +7.0 | V |
| Input voltage(on any pin) | VIN | VSS -0.3VINVDD +0.3 | V |
| Output short circuit duration | tshort | indefinite | s |
| Operating temperature range | Tamb | -40 to +85 | |
| Storage temperature range | Tstg | -65 to +150 | |
| Thermal resistance(SSO44) | RthJA | 110 | K/W |
| Soldering temperature(t10s) | Tsld | 260 |
M44C510E Features
Programmable system clock with prescaler and five different clock sources:
4-MHz crystal oscillator
32-kHz crystal oscillator
RC-oscillator fully integrated
RC-oscillator with external resistor adjustment
External clock input
Wide supply voltage range (2.2 V to 6.2 V)
Very low halt current (< 1 A)
4 KByte ROM, 256 x 4-bit RAM
8 hard and software interrupt priority levels
Up to 10 external and 4 internal interrupts, bitwise maskable with programmable priority level
Up to 34 I/O lines including 8 high drive I/O-lines (20 mA , V DD = 5 V)
I/O ports bitwise configurable with combined interrupt handling (for serial I/O applications)
2 x 8-bit multifunction timer/counters
Coded reset and watchdog timer **
Power-on reset and "brown out" function
Various power-down modes
Efficient, hardware-controlled interrupt handling
High-level programming language in qFORTH
Comprehensive library of useful routines
Windows 95/ NT based development tools
4-MHz crystal oscillator
32-kHz crystal oscillator
RC-oscillator fully integrated
RC-oscillator with external resistor adjustment
External clock input
Wide supply voltage range (2.2 V to 6.2 V)
Very low halt current (< 1 A)
4 KByte ROM, 256 x 4-bit RAM
8 hard and software interrupt priority levels
Up to 10 external and 4 internal interrupts, bitwise maskable with programmable priority level
Up to 34 I/O lines including 8 high drive I/O-lines (20 mA , V DD = 5 V)
I/O ports bitwise configurable with combined interrupt handling (for serial I/O applications)
2 x 8-bit multifunction timer/counters
Coded reset and watchdog timer **
Power-on reset and "brown out" function
Various power-down modes
Efficient, hardware-controlled interrupt handling
High-level programming language in qFORTH
Comprehensive library of useful routines
Windows 95/ NT based development tools

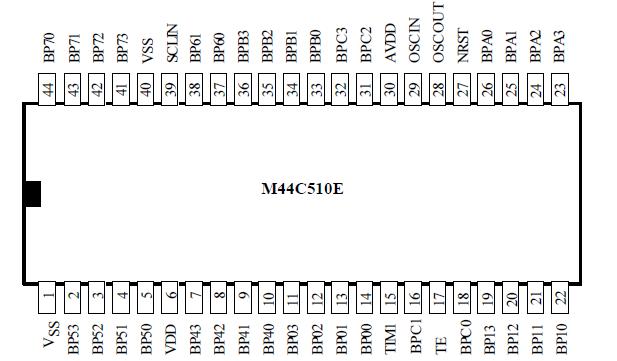

M44C510E Connection Diagram
M44C510E
PDF/DataSheet Download
- Datasheet: M44C510E
- File Size: 726748 KB
- Manufacturer: Atmel
- Click here to Download
- ·M440T1MV
- STMICROELECTRONICS [STMicroelectronics]
- 3.3V, 32 Mbit (1024 Kbit x 32) TIMEKEEPER SRAM
- 464918 KB
- ·M440T1MV-15ZA9
- STMICROELECTRONICS [STMicroelectronics]
- 3.3V, 32 Mbit (1024 Kbit x 32) TIMEKEEPER SRAM
- 464918 KB
- ·M440T513Y
- STMicroelectronics
- 5.0V, 16 MBIT (512 KBIT X 32) TIMEKEEPER%AE SRAM
- 483303 KB
- ·M44C090
- ATMEL [ATMEL Corporation]
- Low-Current Microcontroller for Wireless Communication
- 515396 KB
- ·M44C090
- 4-bit microcontroller - low current solution for wireless communication (M44C890 with EEPROM on chip
- 480511 KB
- ·M44C090-H
- ATMEL [ATMEL Corporation]
- Low-Current Microcontroller for Wireless Communication
- 517432 KB
- ·M44C090-V
- Low-current microcontroller for wireless communication, Tamb up to 125ºC
- 433682 KB
- ·M44C092
- Atmel
- Low-Current Microcontrollers for Wireless Communication
- 645955 KB
