Part Number: M48T559Y
Description: The M48T559Y TIMEKEEPER® RAM is an 8K x 8 non-volatile static RAM and real time c...
- Table of contents:
M48T559Y
-
Suppliers
DataSheet
General Description
M48T559Y General Description
The M48T559Y TIMEKEEPER® RAM is an 8K x 8 non-volatile static RAM and real time clock. The monolithic chip is available in the SNAPHAT pack-age to provide a highly integrated battery backed-up memory and real time clock solution.
The 28 pin 330mil SOIC provides sockets with gold plated contacts at both ends for direct con-nection to a separate SNAPHAT housing contain-ing the battery and crystal. The unique design allows the SNAPHAT battery package to be mounted on top of the SOIC package after the completion of the surface mount process.
M48T559Y Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
TA |
Ambient Operating Temperature |
0 to 70 |
°C |
|
TSTG |
Storage Temperature (VCC Off, Oscillator Off) |
40 to 85 |
°C |
|
VIO |
Input or Output Voltages |
0.3 to 7 |
V |
|
VCC |
Supply Voltage |
0.3 to 7 |
V |
|
IO |
Output Current |
20 |
mA |
|
PD |
Power Dissipation |
1 |
W |

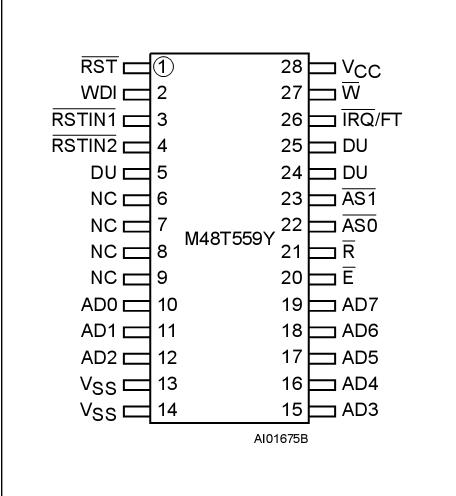

M48T559Y Connection Diagram
M48T559Y
