M48Z2M1
-
Suppliers
DataSheet
General Description
M48Z2M1 General Description
The M48Z2M1/2M1Y ZEROPOWER® RAM is a non-volatile 16,777,216 bit Static RAM organized as 2,097,152 words by 8 bits. The device combines two internal lithium batteries, CMOS SRAMs and a control circuit in a plastic 36 pin DIP long Module.
The ZEROPOWER RAM replaces industry standard SRAMs. It provides the nonvolatility of PROMs without any requirement for special write timing or limitations on the number of writes that can be performed.
M48Z2M1 Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
TA |
Ambient Operating Temperature |
0 to 70
|
°C |
|
TSTG |
Storage Temperature (VCC Off) |
40 to 85 |
°C |
|
TBIAS |
Temperature Under Bias |
40 to 85 |
°C |
|
TSLD(2) |
Lead Solder Temperature for 10 seconds |
260 |
°C |
|
VIO |
Input or Output Voltages |
0.3 to 7 |
V |
|
VCC |
Supply Voltage |
0.3 to 7 |
V |
M48Z2M1 Features
INTEGRATED LOW POWER SRAM, POWER-FAIL CONTROL CIRCUIT and BATTERIES
CONVENTIONAL SRAM OPERATION; UNLIMITED WRITE CYCLES
10 YEARS of DATA RETENTION in the ABSENCE of POWER
AUTOMATIC POWER-FAIL CHIP DESELECT and WRITE PROTECTION
WRITE PROTECT VOLTAGES (VPFD = Power-fail Deselect Voltage):
M48Z2M1: 4.5V VPFD 4.75V
M48Z2M1Y: 4.2V VPFD 4.50V
BATTERIES ARE INTERNALLY ISOLATED UNTIL POWER IS APPLIED
PIN and FUNCTION COMPATIBLE with JEDEC STANDARD 2Mb x 8 SRAMs
CONVENTIONAL SRAM OPERATION; UNLIMITED WRITE CYCLES
10 YEARS of DATA RETENTION in the ABSENCE of POWER
AUTOMATIC POWER-FAIL CHIP DESELECT and WRITE PROTECTION
WRITE PROTECT VOLTAGES (VPFD = Power-fail Deselect Voltage):
M48Z2M1: 4.5V VPFD 4.75V
M48Z2M1Y: 4.2V VPFD 4.50V
BATTERIES ARE INTERNALLY ISOLATED UNTIL POWER IS APPLIED
PIN and FUNCTION COMPATIBLE with JEDEC STANDARD 2Mb x 8 SRAMs

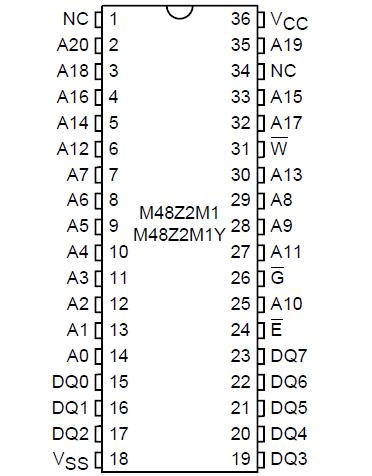

M48Z2M1 Connection Diagram
M48Z2M1
