Description: The M48Z58/58Y ZEROPOWER® RAM is an 8K x 8 non-volatile static RAM that integrates powe...
- Table of contents:
M48Z58
-
Suppliers
DataSheet
General Description
M48Z58 General Description
The M48Z58/58Y ZEROPOWER® RAM is an 8K x 8 non-volatile static RAM that integrates power-fail deselect circuitry and battery control logic on a single die. The monolithic chip is available in two sp ecial packages to provide a highly integrated battery backed-up memory solution.
M48Z58 Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
TA |
Ambient Operating Temperature Grade 1 Grade 6 |
0 to 70 40 to 85 |
°C |
|
TSTG |
Storage Temperature (VCC Off) |
40 to 85 |
°C |
|
T SLD (2) |
Lead Solder Temperature for 10 seconds |
260 |
°C |
|
V |
Input or Output Voltages |
0.3 to 7 |
V |
|
VCC |
Supply Voltage |
0.3 to 7 |
V |
|
IO |
Output Current |
20 |
mA |
|
PD |
Power Dissipation |
1 |
W |
Notes: 1. Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to the absolute maximum rating conditions for extended periods of time may affect reliability. 2. Soldering temperature not to exceed 260°C for 10 seconds (total thermal budget not to exceed 150°C for longer than 30 seconds). CAUTION: Negative undershoots below 0.3 volts are not allowed on any pin while in the Battery Back-up mode. CAUTION: Do NOT wave solder SOIC to avoid damaging SNAPHAT sockets
M48Z58 Features
`INTEGRATED ULTRA LOW POWER SRAM, POWER-FAIL CONTROL CIRCUIT and BATTERY
`READ CYCLE TIME EQUALS WRITE CYCLE TIME
`AUTOMATIC POWER-FAIL CHIP DESELECT and WRITE PROTECTION
`WRITE PROTECT VOLTAGES (VPFD = Power-fail Deselect Voltage):
M48Z58: 4.50V VPFD 4.75V
M48Z58Y: 4.20V VPFD 4.50V
`SELF-CONTAINED BATTERY in the CAPHAT DIP PACKAGE
`PACKAGING INCLUDES a 28-LEAD SOIC and SNAPHAT® TOP (to be Ordered Separately)
`SOIC PACKAGE PROVIDES DIRECT CONNECTION for a SNAPHAT TOP which CONTAINS the BATTERY and CRYSTAL
`PIN and FUNCTION COMPATIBLE with JEDEC STANDARD 8K x 8 SRAMs
`READ CYCLE TIME EQUALS WRITE CYCLE TIME
`AUTOMATIC POWER-FAIL CHIP DESELECT and WRITE PROTECTION
`WRITE PROTECT VOLTAGES (VPFD = Power-fail Deselect Voltage):
M48Z58: 4.50V VPFD 4.75V
M48Z58Y: 4.20V VPFD 4.50V
`SELF-CONTAINED BATTERY in the CAPHAT DIP PACKAGE
`PACKAGING INCLUDES a 28-LEAD SOIC and SNAPHAT® TOP (to be Ordered Separately)
`SOIC PACKAGE PROVIDES DIRECT CONNECTION for a SNAPHAT TOP which CONTAINS the BATTERY and CRYSTAL
`PIN and FUNCTION COMPATIBLE with JEDEC STANDARD 8K x 8 SRAMs

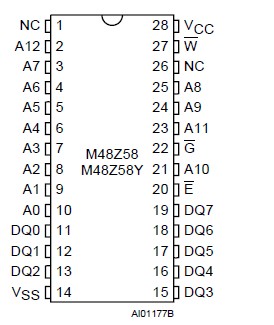

M48Z58 Connection Diagram
