Purchase M48Z59, In-stock M48Z59 From SeekIC.
MFG:ST Package Cooled:07+/08+
Part Number: M48Z59
MFG: ST
Package Cooled: 07+/08+
Description: The M48Z59/59Y ZEROPOWER® RAM is an 8K x 8 non-volatile static RAM that integrates powe...
- Table of contents:
M48Z59
-
Suppliers
DataSheet
General Description
M48Z59 General Description
The M48Z59/59Y ZEROPOWER® RAM is an 8K x 8 non-volatile static RAM that integrates power-fail deselect circuitry and battery control logic on a single die. The monolithic chip is available in two special packages to provide a highly integrated battery backed-up memory solution.
M48Z59 Maximum Ratings
| Symbol | Parameter |
Value |
Unit |
| TA | Ambient Operating Temperature |
0 to 70 |
|
| TSTG | Storage Temperature (VCC Off) |
-40 to 85 |
|
| TSLD(2) | Lead Solder Temperature for 10 seconds |
260 |
|
| VIO | Input or Output Voltages |
0.3 to 7 |
V |
| VCC | Supply Voltage |
0.3 to 7 |
V |
| IO | Output Current |
20 |
mA |
| PD | Power Dissipation |
1 |
W |
Notes: 1. Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to the absolute maximum rating conditions for extended periods of time may affect reliability.
2. Soldering temperature not to exceed 260°C for 10 seconds (total thermal budget not to exceed 150°C for longer than 30 seconds).
CAUTION: Negative undershoots below 0.3 volts are not allowed on any pin while in the Battery Back-up mode.
CAUTION: Do NOT wave solder SOIC to avoid damaging SNAPHAT sockets.
M48Z59 Features
` INTEGRATED ULTRA LOW POWER SRAM, POWER-FAIL CONTROL CIRCUIT and BATTERY
` MICROPROCESSOR POWER-ON RESET (Valid even during battery back-up mode)
` AUTOMATIC POWER-FAIL CHIP DESELECT and WRITE PROTECTION
` WRITE PROTECT VOLTAGES (VPFD = Power-fail Deselect Voltage):
M48Z59: 4.50VVPFD4.75V
M48Z59Y: 4.20VVPFD 4.50V
` SELF-CONTAINED BATTERY in the CAPHAT DIP PACKAGE
` PACKAGING INCLUDES a 28-LEAD SOIC and SNAPHAT® TOP (to be Ordered Separately)
` SOIC PACKAGE PROVIDES DIRECT
CONNECTION for a SNAPHAT TOP which
CONTAINS the BATTERY and CRYSTAL
` PIN and FUNCTION COMPATIBLE with JEDEC STANDARD 8K x 8 SRAMs
` MICROPROCESSOR POWER-ON RESET (Valid even during battery back-up mode)
` AUTOMATIC POWER-FAIL CHIP DESELECT and WRITE PROTECTION
` WRITE PROTECT VOLTAGES (VPFD = Power-fail Deselect Voltage):
M48Z59: 4.50VVPFD4.75V
M48Z59Y: 4.20VVPFD 4.50V
` SELF-CONTAINED BATTERY in the CAPHAT DIP PACKAGE
` PACKAGING INCLUDES a 28-LEAD SOIC and SNAPHAT® TOP (to be Ordered Separately)
` SOIC PACKAGE PROVIDES DIRECT
CONNECTION for a SNAPHAT TOP which
CONTAINS the BATTERY and CRYSTAL
` PIN and FUNCTION COMPATIBLE with JEDEC STANDARD 8K x 8 SRAMs

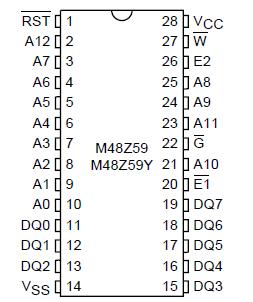

M48Z59 Connection Diagram
M48Z59
