Part Number: M5243BFP
Description: This 2-ch, 3-element graphic equalizer IC is ideal for Hi-Fi audio devices, and features three transis...
- Table of contents:
M5243BFP
-
Suppliers
DataSheet
General Description
M5243BFP General Description
This 2-ch, 3-element graphic equalizer IC is ideal for Hi-Fi audio devices, and features three transistor-type resonance circuits and an output operating amp that handles two channels built into it. It is designed for use in radio cassette players, car stereos, portable stereos and other devices.
M5243BFP Maximum Ratings
| Symbol | ltem | Conditions | Rated values | Unit |
| Vcc | Power supply voltage | 16 | V | |
| lLP | Current load | 30 | mA | |
| Pd | Internal power dissipation | 550 | mW | |
| Topr | Ambient operating temperature | -20to+75 | ||
| Tstg | Storage temperature | -55to+125 |
M5243BFP Features
• Two-channel (stereo) processing is possible with single IC.
• An internal reference voltage circuit eliminates the need for a large-volume capacitor and makes it possible to use
fewer components.
• The Gv can be varied using an external resistor.
• Low noise ........................... VNO FLAT = 4 Vrms (standard)
• Low distortion .................... THD = 0.004% (standard)
(@f = 1 kHz, FLAT)
• An internal reference voltage circuit eliminates the need for a large-volume capacitor and makes it possible to use
fewer components.
• The Gv can be varied using an external resistor.
• Low noise ........................... VNO FLAT = 4 Vrms (standard)
• Low distortion .................... THD = 0.004% (standard)
(@f = 1 kHz, FLAT)

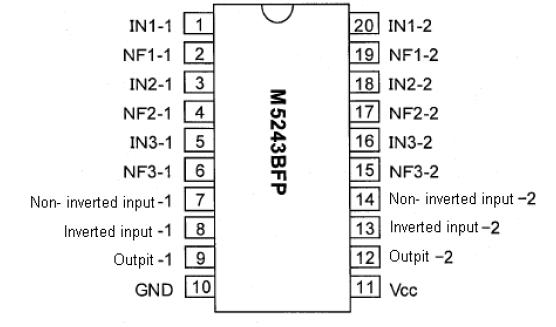

M5243BFP Connection Diagram
M5243BFP
PDF/DataSheet Download
- Datasheet: M5243BFP
- File Size: 272509 KB
- Manufacturer: RENESAS [Renesas Technology Corp]
- Click here to Download
