MFG:MIT Package Cooled:DIP
MFG: MIT
Package Cooled: DIP
Description: The M52737SP is a semiconductor integrated circuit amplifies video signals, having a 3-channel amplifier with a band...
The M52737SP is a semiconductor integrated circuit amplifies video signals, having a 3-channel amplifier with a band width of 150MHz. The circuit also features the OSD mixing function.
The circuit is most useful with high-resolution displays that have OSD, and its function are available for each channel, including OSD blanking, OSD mixing, retrace blanking, wide-band amplification, contrast control (main and sub), and brightness control.
|

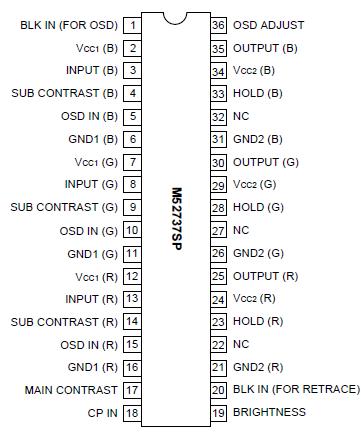

Symbol |
Psrameter |
Ratings |
Unit |
| Vcc | Supply voltage |
13.0 |
V |
| Pd | Power dissipation |
2403 |
mW |
| Topr | Ambient temperature |
-20to+85 |
°C |
| Tstg | Storage temperature |
-40to+150 |
°C |
| Vopr | Recommended supply voltage |
12.0 |
V |
| Vopr' | Recommended supply voltage range |
11.5to12.5 |
V |
| Surge | Electrostatic discharge |
±200 |
V |
• Frequency band width: RGB................................150MHz (3VP-P)
OSD..............................................50MHz
Input :RGB.............................................................0.7VP-P (typ.)
OSD...............................................3.0VP-P min. (positive)
BLK (for OSD)...............................3.0VP-P min. (positive)
Retrace BLK..................................3.0VP-P min. (positive)
Output :RGB...........................................................4.5VP-P (max.)
OSD...........................................................4.5VP-P (max.)
• To adjust contrast and OSD Adj, for each, two types of controls are provided, main and sub. With the main control, the contrast or OSD Adj of the 3-channels can be changed simultaneously. Sub controls are used to adjust the contrast of a given channel individually. The control terminals can be controlled by applying a voltage of 0 to 5V.
• The DC power remains stable at the IC output terminal because a feedback circuit is built in.
M52737SP
