Part Number: M52743BSP



MFG: MIT

Package Cooled: DIP



Description: M52743BSP is semiconductor integrated circuit for CRT display monitor. It includes OSD blanking, OSD mixing, re...


Urgent Purchase

M52743BSP General Description


M52743BSP is semiconductor integrated circuit for CRT display monitor.

It includes OSD blanking, OSD mixing, retrace blanking, wide band amplifre, brightness control.

Main/sub contrast and OSD adjust function can be controlled by I2C bus.

M52743BSP Maximum Ratings

Symbol
Parameter
Ratings
Unit
Vcc Supply voltage
13.0
V
Pd Power dissipation
2403
mW
Topr Ambient temperature
-20to+75
Tstg Storage temperature
-40to+150
Vopr Recommended supply
12.0
V
Vopr' voltage range
10.5to12.5
V
jc Case temperature
22
 °C/W

M52743BSP Features

• Frequency band width: RGB.............................150MHz (at -3dB)
                                       OSD............................................80MHz
  Input :RGB............................................................0.7VP-P (typ.)
            OSD..........................................3VP-P minimum (positive)
            BLK (for OSD)...........................3VP-P minimum (positive)
            Retrace BLK.............................3VP-P minimum (positive)
 Output :RGB........................................................5.5VP-P (max.)
              OSD..........................................................5VP-P (max.)
• Main contrast and sub contrast can be controlled by I2C bus.
• Include internal and external pedestal clamp circuit.

M52743BSP Typical Application

CRT display monitor

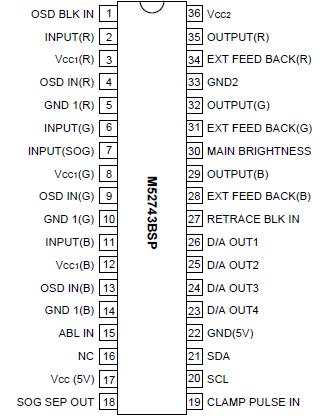

M52743BSP Connection Diagram

M52743BSP Connection Diagram

M52743BSP datasheet

M52743BSP
PDF/DataSheet Download

  • Datasheet: M52743BSP
  • File Size: 143514 KB
  • Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
  • Click here to Download
