Part Number: M52780-XXXSP
Description: M52780 - XXXSP is the I2C BUS controlled Semiconductor Integrated Circuit with 150MHz range 3ch Amp an...
- Table of contents:
M52780-XXXSP
-
Suppliers
DataSheet
General Description
M52780-XXXSP General Description
M52780 - XXXSP is the I2C BUS controlled Semiconductor Integrated Circuit with 150MHz range 3ch Amp and Letter Indication Controller which function in range 30MHz~80MHz.
VIDEO Pre-Amp includes ,in each channel , Retrace Blanking, Wide Range Amp,Brightness Control,and Bus Controlled Main Sub Contrast ,OSD Adjust Control,5ch D/A Output,and OSD Controller.
Letter Indicate Controller can indicate Characters,such as Chinese character , Hiragana letter , Katakana letter ,English letter , Number letter , and so on.
Therefore it is the most suitable for High Resolution Display Monitor.
M52780-XXXSP Features
[Pre - Amp]
•Frequency Band Width:RGB..........150 MHz
•Input :RGB................0.7 Vp-p(Typ)
:Retrace BLK........3.0 Vp-p minimum(Positive)
•Output :RGB...............4.5 Vp-p(Max)
:OSD....................4.5 Vp-p(Max)
•Contrast Control includes Main Control which change
3ch at the same time and Sub Control which change each
channel independently. OSD Adjust has Main Control only.
•Both can be controlled by I2C BUS.
•Include Internal and External Pedestal Clamp Circuit.
M52780-XXXSP Typical Application
CRT DISPLAY MONITOR

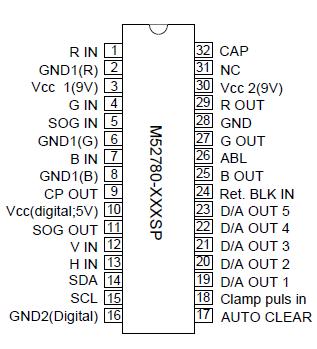

M52780-XXXSP Connection Diagram
M52780-XXXSP
