M54532P
-
Suppliers
DataSheet
General Description
M54532P General Description
M54532P and M54532FP are four-circuit Darlington transistor arrays with clamping diodes. The circuits are made of
NPN transistors. Both the semiconductor integrated circuits perform high-current driving with extremely low input-current supply.
M54532P Maximum Ratings
|
Symbol |
Parameter |
Conditions |
Ratings |
Unit |
| VCEO | Collector-emitter voltage | Output, H |
-0.5to+50 |
V |
| Ic | Collector current | Current per circuit output, L |
1.5 |
A |
| VI | Input voltage |
-0.5to+10 |
V | |
| VR | Clamping diode reverse voltage |
50 |
V | |
| IF | Clamping diode forward current | Pulse Width 10ms, Duty Cycle 5% |
1.5 |
A |
| Pulse Width 100ms, Duty Cycle 5% |
1.25 | |||
| Pd | Power dissipation | Ta = 25°C, when mounted on board |
1.92(P)/1.00(FP) |
W |
| Topr | Operating temperature |
20to +75 |
||
| Tstg | Storage temperature |
-55to+125 |
M54532P Features
Á High breakdown voltage (BVCEO 50V)
Á High-current driving (Ic(max) = 1.5A)
Á With clamping diodes
Á Wide operating temperature range (Ta = 20 to +75°C)
Á High-current driving (Ic(max) = 1.5A)
Á With clamping diodes
Á Wide operating temperature range (Ta = 20 to +75°C)
M54532P Typical Application
Drives of relays and printers, digit drives of indication elements(LEDs and lamps), and power amplification.

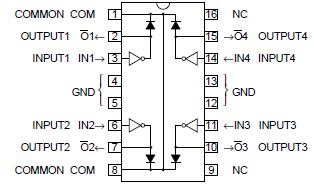

M54532P Connection Diagram
M54532P
PDF/DataSheet Download
- Datasheet: M54532P
- File Size: 78795 KB
- Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
- Click here to Download
