Features:

`Medium breakdown voltage (BVCEO 20V)
` High-current driving (Ic(max) = 700mA)
`With output clamping diodes
`Wide operating temperature range (Ta = 20 to +75°C)

Application

Drives of relays and printers, digit drives of indication elements(LEDs and lamps), and drives of thermal printer

Pinout

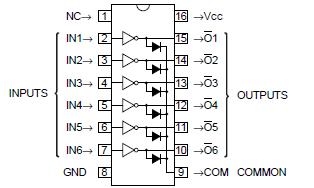

Connection Diagram

Specifications

Symbol	Parameter	Conditions	Ratings	Unit
Vcc	Supply voltage		10	V
V_CEO	Collector-emitter voltage	Output, H	-0.5to+20	V
Ic	Collector current	Current per circuit output, L	700	mA
V_I	Input voltage		-0.5to+10	V
V_R	Clamping diode reverse voltage		20	V
I_F	Clamping diode forward current	Pulse Width 35ms, Duty Cycle 5%	700	mA
I_F	Clamping diode forward current		350	V
Pd	Power dissipation	Ta = 25°C, when mounted on board	1.47	W
T_opr	Operating temperature		20to +75
T_stg	Storage temperature		-55to+125

Description

M54539P six-circuit transistor arrays. The circuits are made of NPN transistors. Both the semiconductor integrated circuits perform high-current driving with extremely low inputcurrent supply.
