MFG:1470 Package Cooled:MIT
MFG: 1470
Package Cooled: MIT
Description: The M54543AFP is a semiconductor integrated circuit that is capable of directly driving a smallsize bi...
The M54543AFP is a semiconductor integrated circuit that is capable of directly driving a smallsize bi-directional motor rotating in both forward and reverse directions.
| Symbol | Parameter | Conditions | Ratings | Unit |
| VCC(1) | Supply voltage (1) | -0.5 +16 | V | |
| VCC,(1) | Output supply voltage (1) | -0.5-+16 | V | |
| VI | Input voltage | 0-VCC | V | |
| VO | Output voltage | -0.5 -VCC+2.5 | V | |
| IO(max) | Allowable motor rush current | tCC=10ms : cycle time 0.2Hz or less | ±700 | mA |
| IO(1) | Continuous output current(1) | ±150 | mA | |
| Pd | Power dissipation | Ta=75 | 200 | mW |
| Topr | Operating temperature | -10-75 | ||
| Tstg | Storage temperature | -55-75 |
Wide range of operating voltage (VCC=4 15V)
Possible direct driving with TTL, PMOS and CMOS IC outputs

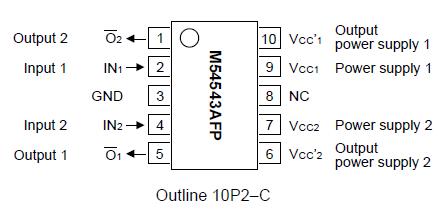

Small outline (10-pin SOP)
Low output saturation voltage (large voltage across motors)
Built-in clamp diode
Large output current drive (IO(max) = ±700mA)
Provided with brake function
Built-in thermal shutdown protection circuit
Sound equipment such as tape deck and radio cassette, VTR, and other general consumer appliances
M54543AFP
PDF/DataSheet Download
