Part Number: M54544L



MFG: MIT

Package Cooled: SIP-9

D/C: 95+

Description: The M54544L is a semiconductor integrated circuit that is capable of directly driving a smallsize bi-d...


Urgent Purchase

M54544L General Description


The M54544L is a semiconductor integrated circuit that is capable of directly driving a smallsize bi-directional motor rotating in both forward and reverse directions.

M54544L Maximum Ratings

Symbol Parameter Conditions
Ratings
Unit
VCC (1)
 Supply voltage (1)
-0.5 - +16
V
VCC (2)
 Supply voltage (2) With an external heat sink (3000mm2*1.5mm)
-0.5 - +20
W
VCC'
 Driver supply voltage
-0.5- +16
V
VI
 Input voltage
0 t- VCC
V
VO
 Output voltage
-0.5 - VCC'+2.5
V
IO (max)
 Peak output current top=10ms : Repetitive cycle 0.2Hz or less
±1.5
A
IO (1)
 Continuous output current (1)
±330
mA
IO (2)
 Continuous output current (2) With an external heat sink (3000mm2*1.5mm)
±600
mA
Pd
 Power dissipation Ta=75°C
1.15
W
Topr
 Operating temperature
-10 to -75
°C
Tstg
 Storage temperature
-55 to -125
°C

M54544L Features

Wide range of operating voltage (VCC=4 16V)
Possible direct driving with TTL, PMOS and CMOS IC outputs
lLow output saturation voltage (large voltage across motors)
lBuilt-in clamp diode
Large output current drive (IO(max) = ±1.2A)
Provided with brake function

M54544L Typical Application

Sound equipment such as tape deck and radio cassette, VTR, and other general consumer appliances

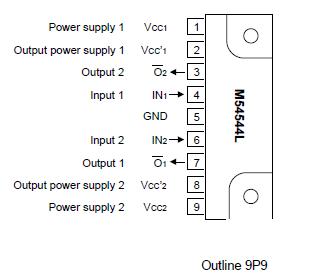

M54544L Connection Diagram

M54544L Connection Diagram

M54544L datasheet

M54544L
PDF/DataSheet Download

  • Datasheet: M54544L
  • File Size: 82400 KB
  • Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
  • Click here to Download
