Part Number: M54567FP
MFG: MIT
Description: M54567P and M54567FP are four-circuit Darlington transistor arrays with clamping diodes. The circuits ...
- Table of contents:
M54567FP
-
Suppliers
DataSheet
General Description
M54567FP General Description
M54567P and M54567FP are four-circuit Darlington transistor arrays with clamping diodes. The circuits are made of PNP and NPN transistors. Both the semiconductor integrated circuits perform high-current driving with extremely low input-current supply.
M54567FP Maximum Ratings
|
Symbol |
Parameter |
Conditions |
Ratings |
Unit | |
|
VCC |
Supply voltage |
10 |
V | ||
|
VCEO |
Collector-emitter voltage | Output, H |
0.5 ~+50 |
V | |
|
IC |
Collector current | Current per circuit output, L |
1.5 |
A | |
|
VI |
Input voltage |
0.5 ~ +30 |
V | ||
|
VR |
Clamping diode reverse voltage |
50 |
V | ||
|
IF |
Clamping diode forward current | Pulse Width 10ms, Duty Cycle 5% |
1.5 |
A | |
| Pulse Width 100ms, Duty Cycle5% |
1.0 | ||||
|
Pd |
Power dissipation | Ta = 25°C, when mounted on board |
1.79(P)/1.10(FP) |
W | |
|
Topr |
Operating temperature |
20 ~ +75 |
°C | ||
|
Tstg |
Storage temperature |
55 ~ +125 |
°C | ||
M54567FP Features
` High breakdown voltage (BVCEO 50V)
`High-current driving (Ic(max) = 1.5A)
` With clamping diodes
`Driving available with NMOS IC output
` Wide operating temperature range (Ta = 20 to +75°C)
`High-current driving (Ic(max) = 1.5A)
` With clamping diodes
`Driving available with NMOS IC output
` Wide operating temperature range (Ta = 20 to +75°C)
M54567FP Typical Application
Drives of relays and printers, digit drives of indication elements (LEDs and lamps), and power amplification

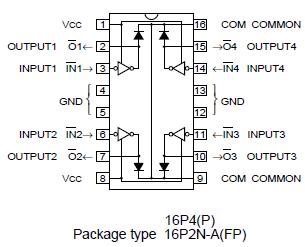

M54567FP Connection Diagram
