Purchase M54585P, In-stock M54585P From SeekIC.
MFG:MIT Package Cooled:DIP
Part Number: M54585P
MFG: MIT
Package Cooled: DIP
Description: M54585P and M54585FP are eight-circuit Darlington transistor arrays with clamping diodes. The circuits...
- Table of contents:
M54585P
-
Suppliers
DataSheet
General Description
M54585P General Description
M54585P and M54585FP are eight-circuit Darlington transistor arrays with clamping diodes. The circuits are made of NPN transistors. Both the semiconductor integrated circuits perform high-current driving with extremely low input-current supply.
M54585P Maximum Ratings
|
Symbol |
Parameter |
Conditions |
Ratings |
Unit | |
|
VCEO |
Collector-emitter voltage | Output, H |
0.5 ~ +50 |
V | |
|
IC |
Collector current | Current per circuit output, L |
500 |
mA | |
|
VI |
Input voltage |
0.5 ~ +30 |
V | ||
|
IF |
Clamping diode forward current |
500 |
mA | ||
|
VR |
Clamping diode reverse voltage |
50 |
V | ||
|
Pd |
Power dissipation | Ta = 25°C, when mounted on board |
1.79(P)/1.10(FP) |
W | |
|
Topr |
Operating temperature |
20 ~ +75 |
°C | ||
|
Tstg |
Storage temperature |
55 ~ +125 |
°C | ||
M54585P Features
`High breakdown voltage (BVCEO 50V)
`High-current driving (Ic(max) = 500mA)
` With clamping diodes
`Driving available with TTL output or with PMOS IC output
` Wide operating temperature range (Ta = 20 to +75°C)
`High-current driving (Ic(max) = 500mA)
` With clamping diodes
`Driving available with TTL output or with PMOS IC output
` Wide operating temperature range (Ta = 20 to +75°C)
M54585P Typical Application
Drives of relays and printers, digit drives of indication elements such as LEDs and lamps, and MOS-bipolar logic IC interfaces

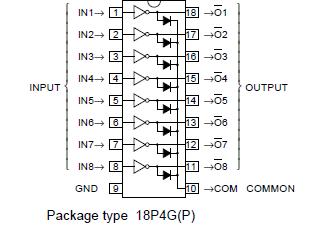

M54585P Connection Diagram
M54585P
