Part Number: M54587FP
MFG: MIT
Package Cooled: SMD20
Description: M54587P and M54587FP are eight-circuit collector-currentsynchronized Darlington tra...
- Table of contents:
M54587FP
-
Suppliers
DataSheet
General Description
M54587FP General Description
M54587P and M54587FP are eight-circuit collector-currentsynchronized Darlington transistor arrays. The circuits are made of PNP and NPN transistors. Both the semiconductor integrated circuits perform high-current driving with extremely low input-current supply.
M54587FP Maximum Ratings
|
Symbol |
Parameter |
Conditions |
Ratings |
Unit | |
|
VCC |
Supply voltage |
10 |
V | ||
|
VCEO |
Collector-emitter voltage | Output, H |
0.5 ~ +50 |
V | |
|
VI |
Input voltage |
0.5 ~ VCC |
V | ||
|
IC |
Collector current | Current per circuit output, L |
500 |
mA | |
|
IF |
Clamping diode forward current |
500 |
mA | ||
|
VR |
Clamping diode reverse voltage |
50 |
V | ||
|
Pd |
Power dissipation | Ta = 25°C, when mounted on board |
1.79/1.1 |
W | |
|
Topr |
Operating temperature |
20 ~ +75 |
°C | ||
|
Tstg |
Storage temperature |
55 ~ +125 |
°C | ||
M54587FP Features
` High breakdown voltage (BVCEO 50V)
` High-current driving (IC(max) = 500mA)
`"L" active level input
` With input diode
` With clamping diodes
` Wide operating temperature range (Ta = 20 to +75°C)
` High-current driving (IC(max) = 500mA)
`"L" active level input
` With input diode
` With clamping diodes
` Wide operating temperature range (Ta = 20 to +75°C)
M54587FP Typical Application
Interfaces between microcomputers and high-voltage, highcurrent drive systems, drives of relays and MOS-bipolar logic IC interfaces

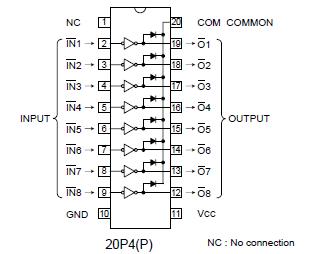

M54587FP Connection Diagram
M54587FP
PDF/DataSheet Download
- Datasheet: M54587FP
- File Size: 45069 KB
- Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
- Click here to Download
