M54HC05

Features:

.HIGH SPEED
t_PD = 8 ns (TYP.) AT V_CC = 5 V
.LOWPOWER DISSIPATION
I_CC = 1 mA (MAX.) AT T_A = 25 °C
.HIGH NOISE IMMUNITY
V_NIH= V_NIL= 28%V_CC (MIN.)
.OUTPUT DRIVE CAPABILITY
10 LSTTL LOADS
.WIDE OPERATING VOLTAGE RANGE
V_CC (OPR) = 2 V TO 6 V
.PIN AND FUNCTION COMPATIBLE WITH
54/74LS05

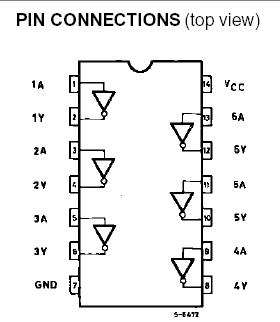

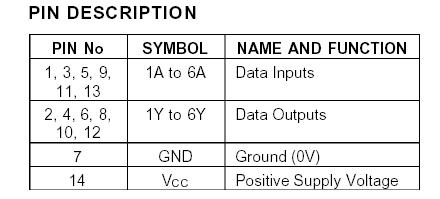

Pinout




Specifications

Symbol	Parameter	Value	Unit
VCC	Supply Voltage	-0.5 to +7	V
VI	DC Input Voltage	-0.5 to VCC + 0.5	V
VO	DC Output Voltage	-0.5 to VCC + 0.5	V
IIK	DC Input Diode Current	± 20	mA
IOK	DC Output Diode Current	± 20	mA
IO	DC Output Current	± 25	mA
ICC or IGND	DC VCC or Ground Current	± 50	mA
PD	Power Dissipation	500(*)	mW
Tstg	Storage Temperature	-65 to +150	°C
TL	Lead Temperature (10 sec)	300	°C




Description

   The M54/74HC05 is a high speed CMOS HEX OPEN DRAIN INVERTER fabricated in silicon gate C²MOStechnology. It has the same highspeed performance of LSTTL combined with true CMOS low power consumption.

   The internal circuit is composed of 3 stages including buffer output, which enables high noise immunity and stable output. All inputs are equipped with circuits against static discharge and transient excess voltage.
