Part Number: M54/M74HC368
Description: The M54/74HC367 and the M54/74HC368 are high speed CMOSHE XBUSBUFFER (3-STATE) fabri-catedinsilicongat...
- Table of contents:
M54/M74HC368
-
Suppliers
DataSheet
General Description
M54/M74HC368 General Description
The M54/74HC367 and the M54/74HC368 are high speed CMOSHE XBUSBUFFER (3-STATE) fabri-catedinsilicongateC2
MOS technology.Theyhave the same high speed performance of LSTTL combined with true CMOS low power consumption.
The sedevice scontain sixbuffers,fourbuffers are controlled by an enablein put (G1) and the other two buffers are controlled by the other enableinput (G2);the output sofe ach buffer group areen abled when G1 and/or G2 in put sareheld low,and when held high the seout put sare disabled to be high-impedance. These out put sare capable of driving up to 15LSTTL loads.The designer has achoice of non inverting out puts (HC367) and inverting out puts (HC368). All inputs are equipped with protection circuits against staticdis chargeand transien tex cess volt-age.
M54/M74HC368 Maximum Ratings
| Symbol | Parameter | Value | Unit | |
| VCC | SupplyVoltage | -0.5to+7 | V | |
| VI |
DCInputVoltage | -0.5to VCC+0.5 | V | |
| VO |
DCOutputVoltage | -0.5to VCC+0.5 | V | |
| IIK |
DCInputDiodeCurrent | ±20 | mA | |
| IOK |
DCOutputDiodeCurrent | ±20 | mA | |
| IO |
DCOutputSourceSinkCurrentPerOutputPin | ±35 | mA | |
| ICCorIGND |
DC VCC orGroundCurrent | ±70 | mA | |
| PD |
PowerDissipation | 500(*) | mW | |
| Tstg |
StorageTemperature | -65to+150 | °C | |
| TL |
LeadTemperature(10sec) | 300 | °C |
M54/M74HC368 Features
HIGHSPEED
tPD= 11 ns(TYP.)ATVCC=5V
LOWPOWERDISSIPATION
ICC =4 µA(MAX.)AT TA=25°C
HIGHNOISEIMMUNITY
VNIH=VNIL=28%VCC(MIN.)
OUTPUTDRIVECAPABILITY
15LSTTLLOADS
SYMMETRICALOUTPUTIMPEDANCE
|IOH|=IOL=6 mA(MIN.)
BALANCEDPROPAGATIONDELAYS
tPLH=tPHL
WIDEOPERATINGVOLTAGERANGE
VCC (OPR)=2 V TO 6 V
PINANDFUNCTIONCOMPATIBLEWITH
54/74LS367/368
tPD= 11 ns(TYP.)ATVCC=5V
LOWPOWERDISSIPATION
ICC =4 µA(MAX.)AT TA=25°C
HIGHNOISEIMMUNITY
VNIH=VNIL=28%VCC(MIN.)
OUTPUTDRIVECAPABILITY
15LSTTLLOADS
SYMMETRICALOUTPUTIMPEDANCE
|IOH|=IOL=6 mA(MIN.)
BALANCEDPROPAGATIONDELAYS
tPLH=tPHL
WIDEOPERATINGVOLTAGERANGE
VCC (OPR)=2 V TO 6 V
PINANDFUNCTIONCOMPATIBLEWITH
54/74LS367/368

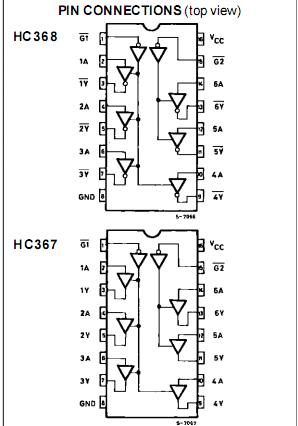

M54/M74HC368 Connection Diagram
M54/M74HC368
