MFG:MIT Package Cooled:DIP D/C:N/A
MFG: MIT
Package Cooled: DIP
D/C: N/A
Description: The M56754SP is a semiconductor IC developed as the motor driver used for CD-ROM and CD player.This circuit inc...
|

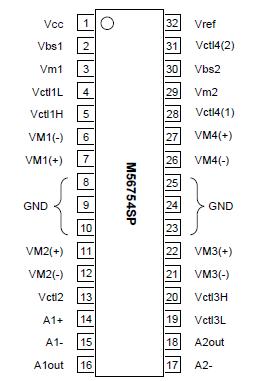

Symbol |
Parameter |
Conditions |
Ratings |
Unit |
| Vbs | Supply voltage | 2,30pin |
15 |
V |
| Vm | Supply voltage | 3,29pin |
15 |
V |
| Vcc | Supply voltage | 1pin |
7 |
V |
| Io | Output Current |
700 |
mA | |
| Vin | Maximum Input Voltage of each Terminals | 4,5,13,14,15,17,19,20,28,31,32pin |
0-Vcc |
V |
| Pt | Power Dissipation | With infinite heatsink |
4.5 |
W |
| Without heatsink |
1.75 | |||
| K | Thermal Derating | With infinite heatsink |
36 |
mW/°C |
| Without heatsink |
14 |
°C/W | ||
| Tj | Junction Temperature |
150 |
°C | |
| Topr | Operating Temperature Range |
-10to75 |
| |
| Tstg | Storage Temperature Range |
-40to125 |
|
M56754SP
PDF/DataSheet Download
