Purchase M56755AFP, In-stock M56755AFP From SeekIC.
MFG:MIT Package Cooled:SMD
Part Number: M56755AFP
MFG: MIT
Package Cooled: SMD
Description: The M56755AFP is a semiconductor integrated circuit designed for a single chip controller for CD-ROM s...
- Table of contents:
M56755AFP
-
Suppliers
DataSheet
General Description
M56755AFP General Description
The M56755AFP is a semiconductor integrated circuit designed for a single chip controller for CD-ROM spindle motor.
M56755AFP has a both (forward and reverse) motor torque control by the motor speed control terminal.
M56755AFP has the several braking mode that an user can flexibly select in order to generate the reverse torque. Also, this device includes a bias circuit for Hall Sensor, a current limit circuit and a thermal shut down function.
M56755AFP Maximum Ratings
| Symbol | Parameter | Conditions | Rating | Unit |
| VM | Motor supply voltage | 13pin maximum input voltage |
16 |
V |
| Vcc2 | 12V supply voltage | 14pin maximum input voltage |
16 |
V |
| Vcc1 | 5V supply voltage | 17pin maximum input voltage |
7.0 |
V |
| Io | Output current | *Note 1 |
1.5 |
A |
| VH(c) | Sensor amp. Differential input range | 19-24pins |
4.5 |
V |
| Pt | Power dissipation | Free Air |
1.2 |
W |
| K | Thermal derating | Free Air |
9.6 |
mW/°C |
| Tj | Junction temperature |
150 |
| |
| Topr | Operating temperature |
-20to+75 |
| |
| Tstg | Storage temperature |
-40to+125 |
|
M56755AFP Features
·3.3V DSP available.
·The supply voltage with wide range.(4.5V to 13.2V)
·High motor drive current (1.2A).
·Motor current control for the both motor torque is possible.
·Reverse torque mode select [SHORT BRAKING, etc]
·Sleep mode
·Hall amplifier sensitivity select
·Automatic stop select (with reverse detected signal pin)
·The supply voltage with wide range.(4.5V to 13.2V)
·High motor drive current (1.2A).
·Motor current control for the both motor torque is possible.
·Reverse torque mode select [SHORT BRAKING, etc]
·Sleep mode
·Hall amplifier sensitivity select
·Automatic stop select (with reverse detected signal pin)
M56755AFP Typical Application
Above 8 times speed CD-ROM, DVD, DVD-ROM etc.

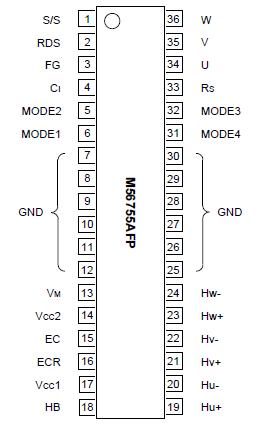

M56755AFP Connection Diagram
M56755AFP
PDF/DataSheet Download
- Datasheet: M56755AFP
- File Size: 219003 KB
- Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
- Click here to Download
