Purchase M56758FP, In-stock M56758FP From SeekIC.
MFG:MIT
Part Number: M56758FP
MFG: MIT
Description: The M56758FP is a semiconductor integrated circuit designed for a actuator driver used for MD, CD-audi...
- Table of contents:
M56758FP
-
Suppliers
DataSheet
General Description
M56758FP General Description
The M56758FP is a semiconductor integrated circuit designed for a actuator driver used for MD, CD-audio, etc. This device can function 5-channel-actuators by 1 chip due to include 5 channel BTL drivers.
Sufficient output dynamic range can be obtained by low supply voltage because saturation voltage of power output is low. All channels include level shift circuit in order that output swings most suitably although reference voltage of signal disposal system in each system becomes 1.5V. And, differential PWM control is
possible since all channels are composed of Differential input structure. Also, as this device includes general purpose OP amp, it is suited to wide-ransing application. Further more, this devise is able to power save since it includes mute circuit.
M56758FP Maximum Ratings
|
Symbol |
Parameter |
Conditions |
Ratings |
Unit |
| Vbs | Bootstrap power supply | VBS power supply |
15 |
V |
| Vm | Motor power supply | Vm power supply |
15 |
V |
| Io | Output Current |
500 |
mA | |
| Vin | Maximum Input Voltage of each Terminals | 3,6,15,16,17,18,200pin |
0-VBS1 |
V |
| 1,23,24,25,26,37,40,42pin |
0-VBS2 |
V | ||
| Pt | Power Dissipation | Free Air |
1.2 |
W |
| K | Thermal Derating | Free Air |
9.6 |
mW/°C
|
| Tj | Junction Temperature |
150 |
°C | |
| Topr | Operating Temperature Range |
-10to75 |
| |
| Tstg | Storage Temperature Range |
-40to150 |
|
M56758FP Features
`3.3V DSP available
`Low saturation voltage.(Typical 1.35V at load current 0.5A and no bootstrap condition.)
Absolute maximum rating of load current: CH1 5 500mA
A bootstrap function is available.
`There are two motor power supplies.
Vm1 CH1, 2 motor power supply-1
Vm2 CH3, 4, 5 motor power supply-2
`Built-in OP amp. for Regulator. (Enables Regulator structure by using external PNP Tr. and resistor.)
`Flexible Input amp. setting.
Enables PWM control.
`Low cross-over distortion.
`Wide supply voltage range. (4.5V 13.2V)
`Built-in Thermal protection.
`Built-in Mute circuit. (two systems)
MUTE1: CH1 4, MUTE2: CH5
`Low saturation voltage.(Typical 1.35V at load current 0.5A and no bootstrap condition.)
Absolute maximum rating of load current: CH1 5 500mA
A bootstrap function is available.
`There are two motor power supplies.
Vm1 CH1, 2 motor power supply-1
Vm2 CH3, 4, 5 motor power supply-2
`Built-in OP amp. for Regulator. (Enables Regulator structure by using external PNP Tr. and resistor.)
`Flexible Input amp. setting.
Enables PWM control.
`Low cross-over distortion.
`Wide supply voltage range. (4.5V 13.2V)
`Built-in Thermal protection.
`Built-in Mute circuit. (two systems)
MUTE1: CH1 4, MUTE2: CH5
M56758FP Typical Application
MD, CD-audio, CD-ROM, VCD, DVD etc.

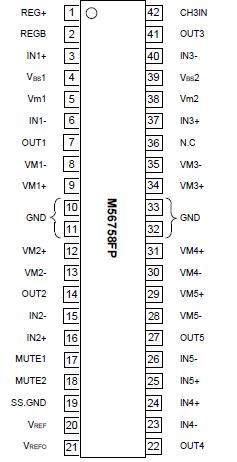

M56758FP Connection Diagram
M56758FP
PDF/DataSheet Download
- Datasheet: M56758FP
- File Size: 342095 KB
- Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
- Click here to Download
