Part Number: M59330P
Description: The M59330P is an integrated circuit for two-line LAN transceivers, conforming to J1850 specifications...
- Table of contents:
M59330P
-
Suppliers
DataSheet
General Description
M59330P General Description
The M59330P is an integrated circuit for two-line LAN transceivers, conforming to J1850 specifications.
The chip incorporates bus line anomaly detection functions; anomalous behavior causes the ERR signal to go to "L". A
selector causes a normal bus signal to be output to RX.
By setting the standby signal to "L", a low consumption current state is maintained. At this time, the drivers BUS (+)
and BUS () are both turned off.
In standby mode, on input of "H" level to the ERR pin, error output reset occurs.
M59330P Maximum Ratings
|
Symbol |
Quantity |
Conditions |
Rated Value |
Unit | ||
|
Min. |
Typ. |
max. | ||||
|
VDD |
Power supply voltage |
-0.3 |
6.5 |
V | ||
|
V1 |
Input voltage |
-0.3 |
VDD+0.3 |
V | ||
|
V0 |
Output voltage |
-0.3 |
VDD+0.3 |
V | ||
|
IO |
Driver output current |
BUS(+) |
50 |
mA | ||
| BUS(-) |
-50 |
|||||
|
Pmex |
Allowable power consumption |
200 |
mW | |||
|
Tstg |
Storage temperature |
-50 |
125 |
°C | ||
currents are positive when flowing into a circuit, and negative (preceded by a minus sign) when flowing outward.
M59330P Features
• Conforms to SAE J1850 specifications
• Internal bus line anomaly detection function
• Internal bus line anomaly detection function
M59330P Typical Application
LAN transceiver for automotive use, generic LAN transceiver, transceiver for other communication applications

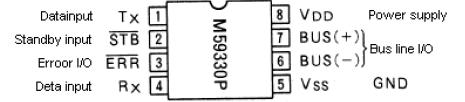

M59330P Connection Diagram
M59330P
PDF/DataSheet Download
- Datasheet: M59330P
- File Size: 224451 KB
- Manufacturer: RENESAS [Renesas Technology Corp]
- Click here to Download
