Part Number: M61016F
MFG: MITSUBISHI
D/C: 03+
Description: The M61016F is a semiconductor integrated circuit designed to detect quantity of light and used for ca...
- Table of contents:
M61016F
-
Suppliers
DataSheet
General Description
M61016F General Description
The M61016F is a semiconductor integrated circuit designed to detect quantity of light and used for cameras and illuminometers.Because a high-sensitivity SPD sensor is built in this IC, it is possible not only to reduce the space and expenses to mount it but also to conduct wide-ranging detection of light volume.
M61016F Maximum Ratings
|
Parameter |
Symbol |
Condition |
Ratings |
Unit |
|
Supply voltage |
Vcc |
-0.3to7.0 |
V | |
|
power dissipation |
Pd |
150 |
mW | |
|
Input voltage |
VIN |
-0.3toVCC+0.3 |
V | |
|
Output current |
IO(max) |
Pin VOUT |
0.2 |
mA |
|
operating temperature |
Topr |
-10to+50 |
°C | |
|
Storage temperature range |
Tstg |
-30to+85 |
°C | |
|
Thermal derating |
K |
-2.5 |
mW/°C |
M61016F Features
• A 2-channel SPD sensor is built in.(1-channel for spot and one for average)
• Wide-ranging detection of light volume.
• One output pin (thermometer output and photometry output)
• Small-sized transparent molded plastic package.
• Wide-ranging detection of light volume.
• One output pin (thermometer output and photometry output)
• Small-sized transparent molded plastic package.
M61016F Typical Application
Automatic exposure control for cameras,illuminometers.

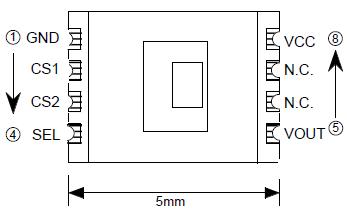

M61016F Connection Diagram
M61016F
