M61018GP

Features: • Built-in DC/DC converter (Presser type,TYP 5.0V)• Built-in Regulator circuit for Auto Focus (Depressor type,TYP 4.1V)• Built-in IRED drive circuit (TYP Io=1A)• Built-in DC motor driver circuit of 1.5CHApplicationMotor driver for compact camera etc.PinoutSpecific...

product image

M61018GP Picture
See larger image
SeekIC No. : 004406401 Detail

M61018GP: Features: • Built-in DC/DC converter (Presser type,TYP 5.0V)• Built-in Regulator circuit for Auto Focus (Depressor type,TYP 4.1V)• Built-in IRED drive circuit (TYP Io=1A)• Bu...

M61018GP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M61018GP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Built-in DC/DC converter (Presser type,TYP 5.0V)
• Built-in Regulator circuit for Auto Focus (Depressor type,TYP 4.1V)
• Built-in IRED drive circuit (TYP Io=1A)
• Built-in DC motor driver circuit of 1.5CH


Application

Motor driver for compact camera etc.

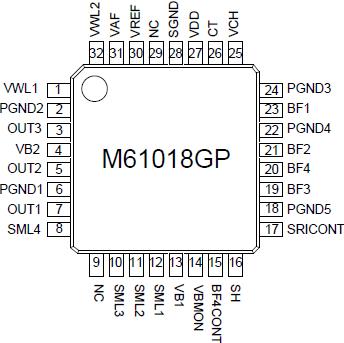

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Ratings
Unit
Remark
Supply voltage
VB
4.0
V
note1
Supply voltage
VDD
6.0
V
note1
Power dissipation
Pd
550
mW
Ta=25°C
Thermal derating
K
4.4
mW/ ºC
Ta25°C
Pin input voltage
VIF
6.0
V
3,4,11,12,13,14,17pin
Another pin
VI/O
0toVDD+0.3
V
note2
Operating temperature
Topr
-20to60
°C
Storage temperature
Tstg
-40to150
°C
Surge voltage
Vsurge
±1000V over
V
C=100PF
R=1.5K
note1 : As a principle , do not provide reversely.
note2 : As a principle , do not provide over supply voltage or under ground voltage.


Description

M61018GP is a semiconductor integrated circuit built-in motor driver for compact camera.All power transistors which have been used as external parts so far are built in by using minute bi-polar process ,so it contributes to reduction of the part cost and the miniaturization of the system .
