M61110FP

Features: • Coil-less AFT• PLL FM demodulation for Audio. No external parts and adjustment. (Target S/N=70dB)• The PLL-SPLIT system provides good sound sensitivity and reduces buzz.• Video output is 2.2Vp-p through EQ AMP• Easy to add Buzz cancel• Hi speed IF AG...

product image

M61110FP Picture
See larger image
SeekIC No. : 004406408 Detail

M61110FP: Features: • Coil-less AFT• PLL FM demodulation for Audio. No external parts and adjustment. (Target S/N=70dB)• The PLL-SPLIT system provides good sound sensitivity and reduces buzz...

M61110FP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M61110FP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Coil-less AFT
• PLL FM demodulation for Audio. No external parts and adjustment. (Target S/N=70dB)
• The PLL-SPLIT system provides good sound sensitivity and reduces buzz.
• Video output is 2.2Vp-p through EQ AMP
• Easy to add Buzz cancel
• Hi speed IF AGC
• Built-in QIF AGC
• Improve over modulation characteristics and Vcc ripple rejection
• Open collector RF AGC output (5-9V available).


Application

TV set, VCR tuners.


Pinout

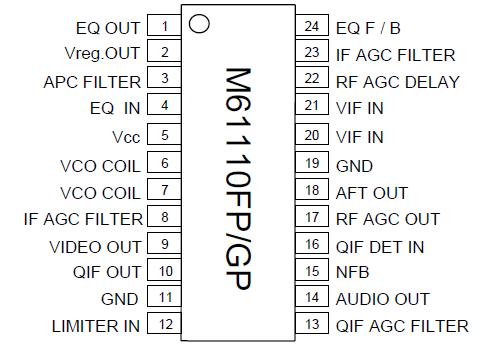

Connection Diagram


Specifications

Parameter
Symbol
Ratings
Unit
Supply voltage
Vcc
6.0
V
Power Consumption
Pd
1190(FP), 728(GP)
mW
operating temperature
Topr
-20to+75
°C
Storage temperature
Tstg
-40to+150
°C



Description

M61110FP is a semiconductor integrated circuit consisting of VIF/SIF signal processing for CTVs and VCRs.
M61110FP provides low cost and high performance system with the coil-less AFT
