Features:

• Eliminates the need for the VCO coil for intermediate frequency signal processing
• AFT adjustment is not required and flat temperature characteristics is realized
• Reference frequency of 3.58 MHz/4.00 MHz
• Image intermediate frequency US (47.75 MHz)/JP (58 .75 MHz)
• VIF/SIF mute function
• SIF buffer output available
• FM receivable (optional)

Application

• TV, VCR

Pinout

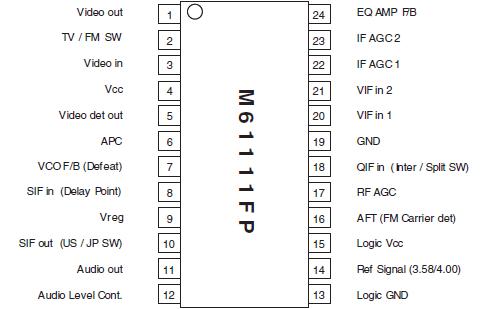

Connection Diagram

Specifications

Parameter	Symbol	Rating	Unit	Remark
Supply voltage	V_CC	6.0	V
Power dissipation	Pd	728	mW
Operating temperature	Topr1	−20 to 75	°C
Storage temperature	Tstg	−40 to 150	°C

Description

The M61111FP is a semiconductor integrated circuit built-in the PLL inter-carrier method VIF/SIF dedicated to NTSC.

The circuit includes the VIF amplifier, image waveform detection, APC detection, IF/RF, AGC, VCO, AFT, LOCK DET, EQ, AF amplifier, limitter, FM waveform detector circuits, and acts as a small tuner.
