Purchase M61201SP, In-stock M61201SP From SeekIC.

MFG:MIT  Package Cooled:DIP-52  D/C:02+

M61201SP Product Image

M61 Series Datasheet download

Five Points

Part Number: M61201SP



MFG: MIT

Package Cooled: DIP-52

D/C: 02+

Description: M61201SP is IIC-bus controlled single chip TV processor which is intend to be provided a solution to P...


Urgent Purchase

M61201SP General Description


M61201SP is IIC-bus controlled single chip TV processor which is intend to be provided a solution to PAL/NTSC and PAL-M/N colour television receivers. It consists of various processing blocks such as video IF, sound IF, luminance, chrominance, baseband delay line,OSD display, interface, H/V deflection, and EAST/WEST geometry, but no SECAM function is integrated.

M61201SP Maximum Ratings

Symbol
Parameter
Ratings
Units
Vcc
 Supply voltage
6.0, 10.0
V
Pd
 Power dissipation
1.69
W
Kt
 Thermal derating
13.5
mW/
Topr
 Operating temperature
-20 to 65
Tstg
 Storage temperature
-40 to 125

M61201SP Features

·VIF VCO Coil-less
·Alignment-free Sound Demodulator
·1 Crystal Chroma Demodulation for full multi system
·Built-in Base band 1H Delay Line
·Fsc output available
·Half Tone available
·Built-in Horizontal Oscillator resonator
·Built in Sync. Sep.(Auto Slicer type)
·Built-in Vertical Saw Tooth Generator
·Built-in Black Peak Hold ,AFC2,Killer Filter
·Inverted SCP OUT,Vertical Pulse Out available
·East-West Geometry Control
·No SECAM function

M61201SP Typical Application

MULTI SYSTEM TELEVISION

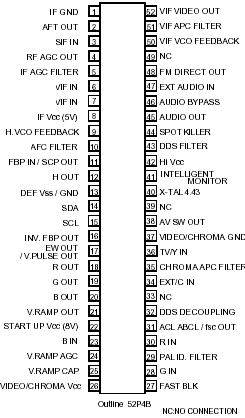

M61201SP Connection Diagram

M61201SP Connection Diagram

M61201SP datasheet

M61201SP
PDF/DataSheet Download
