Purchase M62022FP, In-stock M62022FP From SeekIC.
MFG:RENESAS D/C:2006
Part Number: M62022FP
MFG: RENESAS
D/C: 2006
Description: The M62022 is a semiconductor integrated circuit resets logic circuits according to supply voltage.It ...
- Table of contents:
M62022FP
-
Suppliers
DataSheet
General Description
M62022FP General Description
The M62022 is a semiconductor integrated circuit resets logic circuits according to supply voltage.It is used with many types of circuits,including central processing units.
With the built-in delay circuit,delay time can be adjusted at the user's option by externally adding capacitance.
This circuit can also be used in other applications,such as battery check,level detection and waveform shaping.
M62022FP Maximum Ratings
|
Symbol |
Parameter |
Conditions |
Ratings |
Unit |
|
Vcc |
Supply voltage |
18 |
V | |
|
ISINK |
Output Sink Current |
6 |
mA | |
|
VO |
Output Voltage |
18 |
V | |
|
Pd |
power dissipation |
450(SIP)/300(FP) |
mW | |
|
K |
Thermal Derating |
Ta 25°C |
4.5(SIP)/3.0(FP) |
mW/°C |
|
Topr |
operating temperature |
-30 to +85 |
||
|
Tstg |
storage temperature |
-40 to +125 |
M62022FP Features
•Requires only a few external components.
•Ensures long delay time at low capacitance.
e.g.Delay time is 100ms at 0.33F.
•Limit operating voltage*is low.
0.6V standard(Resistance RL=22k)
(*Minimum supply voltage at which output can be kept low.)
•Wide supply voltage range.....................2~17V
•Highly resistant to rapid voltage fluctuation
•Wide application range
•5-pin single in-line package equivalent in height to dual in-line package
•Ensures long delay time at low capacitance.
e.g.Delay time is 100ms at 0.33F.
•Limit operating voltage*is low.
0.6V standard(Resistance RL=22k)
(*Minimum supply voltage at which output can be kept low.)
•Wide supply voltage range.....................2~17V
•Highly resistant to rapid voltage fluctuation
•Wide application range
•5-pin single in-line package equivalent in height to dual in-line package
M62022FP Typical Application
Reset circuit in p-channel metal-oxide semiconductors,nchannel metal-oxide semiconductors,complementary metal-oxide semiconductors,microcomputers,central processing units,microcomputer units and other logic circuits,Battery check circuit,Backup power selection circuit;Level detection circuit,Waveform shaping circuit,Delay waveform generation circuit,DC-DC converter,and Overvoltage protection circuit.

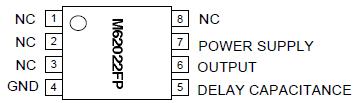

M62022FP Connection Diagram
M62022FP
PDF/DataSheet Download
- Datasheet: M62022FP
- File Size: 18566 KB
- Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
- Click here to Download
