Purchase M62212P, In-stock M62212P From SeekIC.
MFG:MITSUBISHI D/C:96
Part Number: M62212P
MFG: MITSUBISHI
D/C: 96
Description: M62212 is designed as a general purpose DC-DC converter.This small 8 pin package contains many...
- Table of contents:
M62212P
-
Suppliers
DataSheet
General Description
M62212P General Description
M62212 is designed as a general purpose DC-DC converter.
This small 8 pin package contains many functions allowing simpler peripheral circuits and compact set design.
The output transistor is open collector and emitter follower type. This makes the control STEP-UP,STEP-DOWN and
INVERTING converter.
M62212P Maximum Ratings
|
ltems |
Symbols |
Conditions |
Ratings |
Units |
| Power supply voltage |
Vcc |
19 |
V | |
| Output voltage |
Vo |
19 |
V | |
| Output current |
Io |
150 |
mA | |
| Power dissipation |
Pd |
Ta=25°C |
625 (P) 360(FP) 250(GP) |
mW |
| Thermal derating ratio |
Ktheta |
Ta>25°C |
5.00 (P) 2.88 (FP) 2.00(GP) |
mW/°C |
| Operating ambient temperature |
Topr |
-20°Cto85 |
||
| Storage temperature |
Tstg |
-40°Cto125 |
M62212P Features
• Wide operation power supply voltage range ...............2.5 ~ 18V
• Low power consumption..............................................1.3mA typ
• High speed switching is possible.(300kHz)
• Output short protection circuit and ON/OFF control are used.
The dead-time control and the soft-start operation are possible
• Package variation : 8pin DIP/SOP/SSOP8
• Low power consumption..............................................1.3mA typ
• High speed switching is possible.(300kHz)
• Output short protection circuit and ON/OFF control are used.
The dead-time control and the soft-start operation are possible
• Package variation : 8pin DIP/SOP/SSOP8
M62212P Typical Application
General electric products, DC-DC converter

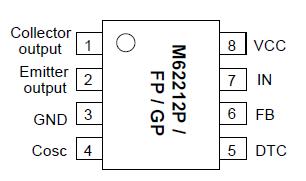

M62212P Connection Diagram
M62212P
PDF/DataSheet Download
- Datasheet: M62212P
- File Size: 53939 KB
- Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
- Click here to Download
