Purchase M62213P, In-stock M62213P From SeekIC.
MFG:Renesas Package Cooled:N/A
Part Number: M62213P
MFG: Renesas
Package Cooled: N/A
Description: M62213P/FP is designed as a general purpose high-speed PWM control IC.This small 10 pin packag...
- Table of contents:
M62213P
-
Suppliers
DataSheet
General Description
M62213P General Description
M62213P/FP is designed as a general purpose high-speed PWM control IC.
This small 10 pin package contains many function and protection circuits allowing simpler peripheral circuits and
compact set design.
This IC can operate high speed switching (700kHz Max) with high speed PWM comparator and current limiting circuit.
M62213P Maximum Ratings
|
Parameter |
Symbols |
Conditions |
Ratings |
Units | |
| supply voltage |
Vcc |
36 |
V | ||
| Out terminal current |
IOUT |
Continuous |
150 |
mA | |
| Peak |
1.0 |
A | |||
| CT terminal supply voltage |
VCT |
36 |
V | ||
| EA IN terminal supply voltage |
VEA IN |
10 |
V | ||
| CLM terminal supply voltage |
VCLM |
-0.3 to+4.0 |
V | ||
| Power dissipation |
Pd |
Ta=25°C |
440 |
mW | |
| Thermal derating |
Ktheta |
Ta 25°C |
3.52 |
mW/°C | |
| Operating temperature |
Topr |
-20to85 |
|||
| Storage temperature |
Tstg |
-40to150 |
|||
M62213P Features
• 700kHz operation to MOS- FET
-- Output current Io= ±1A
-- Totem pole output
• Timer type latch protection circuit with OVP
• Soft start operation is possible (with dead time control)
• Built-in OPAmp for feedback control (photo coupler can be driven)
• High speed pulse-by-pulse current limiting
• Small size 10-pin SOP package
-- Output current Io= ±1A
-- Totem pole output
• Timer type latch protection circuit with OVP
• Soft start operation is possible (with dead time control)
• Built-in OPAmp for feedback control (photo coupler can be driven)
• High speed pulse-by-pulse current limiting
• Small size 10-pin SOP package
M62213P Typical Application
• Switching Regulator
• DC-DC Converter
• DC-DC Converter

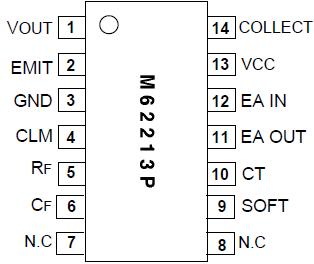

M62213P Connection Diagram
M62213P
PDF/DataSheet Download
- Datasheet: M62213P
- File Size: 70278 KB
- Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
- Click here to Download
