Purchase M62500FP, In-stock M62500FP From SeekIC.
MFG:MIT Package Cooled:SMD
Part Number: M62500FP
MFG: MIT
Package Cooled: SMD
Description: The M62500 is a semiconductor integrated circuit designed and developed as a deflection control of the...
- Table of contents:
M62500FP
-
Suppliers
DataSheet
General Description
M62500FP General Description
The M62500 is a semiconductor integrated circuit designed and developed as a deflection control of the CRT display monitor.
The built-in trigger mode oscillator allows stable PWM control to be gained against a wide range of change of external signals.
The M62500 provides a low supply voltage output malfunction preventive circuit (UVLO) and software start function optimum to horizontal output correction of monitor, high voltage drive and high voltage regulator.
M62500FP Maximum Ratings
| Symbol | Parameter | Ratings | Unit | |
| VCC | Supply voltage | 15 | V | |
| VOUT | Output voltage | 15 | V | |
| IOUT | Output current | ±150 | mA | |
| Vd | Drive output voltage | 15 | V | |
| Id | Drive output current | 20 | mA | |
| VICM | Common mode input voltage range of error amplifier |
-0.3 to VCC | V | |
| VID | Common mode differential input voltage of error amplifier |
VCC | V | |
| Pd | Power dissipation | P | FP | mW |
| 1400 | 1000 | |||
| K | Buffer amplifier output current range | P | FP | mW/°C |
| 11.2 | 8 | |||
| Topr | Operating Temperature | -20 to +75 | °C | |
| Tstg | Storage Temperature | -40 to +125 | °C | |
M62500FP Features
PWM output in synchronization with external signals
Wide range of PWM control frequency 15kHz to 150kHz
The PWM output phase is adjustable against external signals
Soft start
Built-in low voltage output malfunction prevention circuit
Start VCC>9V
Stop VCC<6V
Wide range of PWM control frequency 15kHz to 150kHz
The PWM output phase is adjustable against external signals
Soft start
Built-in low voltage output malfunction prevention circuit
Start VCC>9V
Stop VCC<6V
M62500FP Typical Application
CRT display monitor

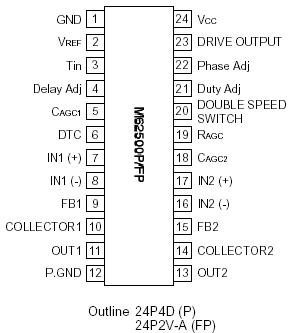

M62500FP Connection Diagram
M62500FP
