Part Number: M64285K









Description: M64285K is a 32x32 pixel CMOS image sensor with the built-in image processor and the analog conditioni...


Urgent Purchase

M64285K General Description


M64285K is a 32x32 pixel CMOS image sensor with the built-in image processor and the analog conditioning function. It contains the information compressing and parallel processing functions. It makes it possible to realize the image information input system to become highly functional, smaller in size, faster in speed, and lower in power onsumption.

M64285K Maximum Ratings

Symbol
Items
Ratings
Unit
DVDD
 Digital Power supply
6
V
AVDD1
 Pixel & Analog Power supply
6
V
AVDD2
 AMP Power supply
6
V
VI
 Digital input voltage *
-0.3 ~ VDD
V
Topt
 Operating ambient temperature
-10 ~ +60
Tstg
 Storage temperature
-20 ~ +80
* Digital input terminals : START, SIN, SCLK, RESET, LOAD, and CLK

M64285K Features

* Single 5.0V power supply.
* Low power dissipation (Typ. 15mW)
* Projection processing of two dimensional (2D) image to one dimensional (1D) image.
   (Column and Row Projection)
* Outputting the average data of the overall image area
* Adjusting the gain, black level, and the data offset
* Variable data rate : 4 ~ 64/ pixel ( is the clock cycle time )
* It is possible to use 8 bit microcontroller for controlling purposes.

M64285K Typical Application

Image inputting systems for gaming devices, interface systems, security, surveillance,factory automation, etc.

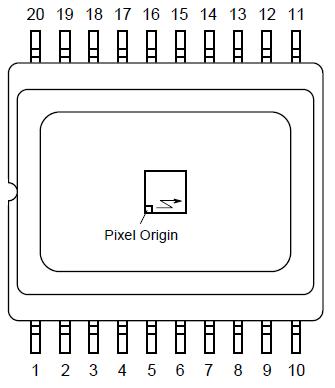

M64285K Connection Diagram

M64285K Connection Diagram

M64285K datasheet

M64285K
PDF/DataSheet Download

  • Datasheet: M64285K
  • File Size: 329499 KB
  • Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
  • Click here to Download
