Part Number: M64285FP









Description: M64285FP is a 32x32 pixel CMOS image sensor with the built-in image processor and the analog condition...


Urgent Purchase

M64285FP General Description


M64285FP is a 32x32 pixel CMOS image sensor with the built-in image processor and the analog conditioning function. It contains the information compressing and parallel processing functions. It makes it possible to realize the image information input system to become highly functional, smaller in size, faster in speed, and lower in power onsumption.

M64285FP Maximum Ratings

Symbols
Items
Ratings
Unit
VDD
 Power supply
6
V
VI
 Digital input voltage *
-0.3 ~ VDD
V
Topt
 Operating ambient temperature
-10 ~ +55
Tstg
 Storage temperature
-20 ~ +80
* Digital input terminals : START, SIN, SCLK, RESET, LOAD, and CLK

M64285FP Features

* Single 5.0V power supply.
* Low power dissipation (Typ. 15mW)
* Projection processing of two dimensional (2D) image to one dimensional (1D) image.
   (Column and Row Projection)
* Outputting the average data of the overall image area.
* Adjusting the gain, black level, and the data offset
* Variable data rate : 4~ 64/ pixel ( is the clock cycle time )
* It is possible to use 8 bit microcontroller for controlling purposes.

M64285FP Typical Application

Image inputting systems for gaming devices, Toys, PC interface systems, etc.
    * MITSUBISHI CMOS Image Sensor in clear resin package is not designed or manufactured for use in a device or system of industrial use that need a high-grade reliability. Please use M64285K for industrial applications.

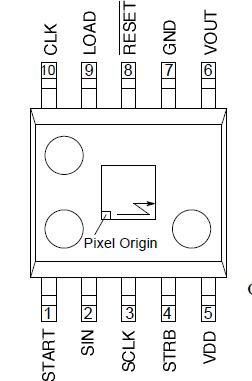

M64285FP Connection Diagram

M64285FP Connection Diagram

M64285FP datasheet

M64285FP
PDF/DataSheet Download

  • Datasheet: M64285FP
  • File Size: 329883 KB
  • Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
  • Click here to Download
