Features:

• Triple 10-bit video speed D-A converters
• Maximum conversion rate of 50 MSPS
• Adjustable analog output amplitude...............................2.0V(Typ)
• Digital input....................................................................TTL level
• Power down function for analog blocks
• Surface mounting package
  (68-pin quad flat package, 0.65mm line and space,14 x 10 mm body)


Application

TV, VCR, etc.


Pinout

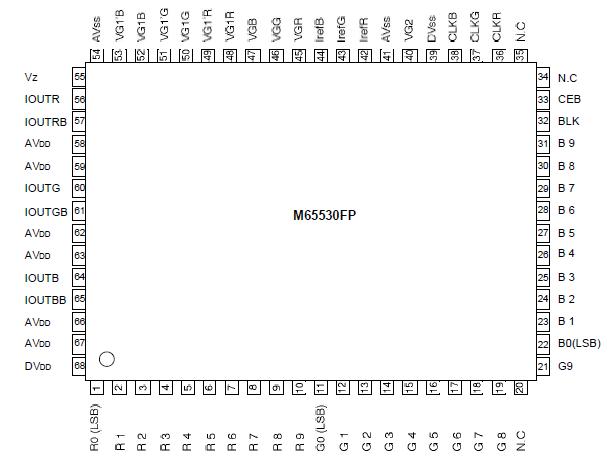

Connection Diagram


Specifications

Symbol
parameter
Conditions
Ratings
Unit
DVDD Digital supply voltage pin68
0 to 7.0
V
AVDD Analog supply voltage Pin 58, 59, 62, 63, 66, 67
0 to 7.0
V
VID Digital input voltage Pin 1 to 19, 21 to 33, 36 to 38
0 to 7.0
V
IOUT Analog output current Pin 56, 57, 60, 61, 64, 65
-30 to 0
mA
Pd Power dissipation
900
mW
Topr Operating temperature
0 to +70
Tstg Storage Temperatare
-20to+125
In current measurement, (+) and (-) is corresponding to an inflow and an outflow current, respectively.


Description

The M65530FP is a CMOS 10-bit digital-to-analog converter for video signal processing. The IC features an adjustment function of analog output amplitude, thereby controlling the amplitude by simply changing an adjustment resistor.
