Features:

• 3ch 8-bit high speed A-D converters
• Maximum conversion rate               80 MSPS(min.)
• Analog input Level                          1.0V(Typ) : 0.5 -1.5 V
• Digital input                                    TTL compatible [ Vinth=1.4V ]
• Digital output                                  VoH=0.7XVcc , VoL=0.3XVcc [ Io=4mA ]
• Low power dissipation                    700mW [ CL=10pF ]
• Package                                          80 pin QFP package, 0.80mm lead pitch
                                                          [ PKG size(without lead) =14mm x 20mm ]
• Small input capacitance                  10 pF
• Built-in Reference Voltag                 Vref(+)=1.5V+150/-330mV(*) Vref(-)=0.5V
• Built-in Clamp circuit                        Vclamp=0.5V+/-250mV(*)
                                                         (*)Controllable by IIC BUS


Application

• LCD monitor
• High speed video processing


Pinout

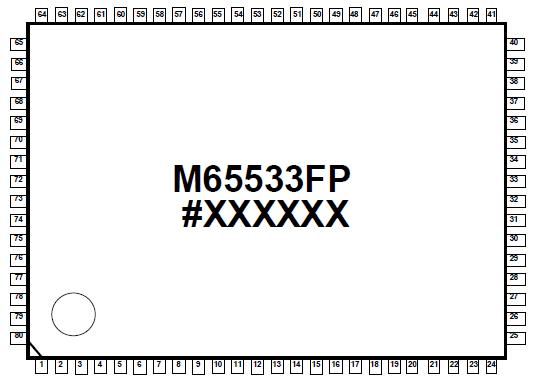

Connection Diagram


Description

The M65533FP is a CMOS 3ch 8-bit 80MHz analog-to-digital converter by sub-ranging architecture for high speed video processing. It can be realized 80MHz operation by using 2 ADCs in parallel. And it has PLL circuit generate a stable clock locked to sync signal.


M65533FP is a type of "AC" connection with internal clamp circuit and variable input range.
