M65582AMF-XXXFP
-
Suppliers
DataSheet
General Description
M65582AMF-XXXFP Maximum Ratings
|
Symbol |
Parameter |
Conditions |
Rating |
Unit |
| VDD(MCU) | Supply voltage (MCU : 5V) | All voltage are based on Vss.Output transistors are cut off. |
−0.3 to 6.0 |
V |
| VDD(ASIC) | Supply voltage (ASIC : 3.3V) |
−0.3 to 4.0 |
V | |
| VI(MCU) | Input Voltage (MCU) |
−0.3 to Vcc+0.3 |
V | |
| VO(MCU) | Output Voltage (MCU) |
−0.3 to Vcc+0.3 |
V | |
| IOH(MCU) | Circuit current (MCU) |
0 to 1 (See note 1) |
mA | |
| IOL1(MCU) | Circuit current (P00-P07, P10, P15, P16, P20-P27, P40-P45) |
0 to 2 (See note 2) |
mA | |
| IOL2(MCU) | Circuit current (P11-P14) |
0 to 6 (See note 2) |
mA | |
| IOL3(MCU) | Circuit current (P24-P27) |
10 (See note 3) |
mA | |
| VID(ASIC) | Digital input voltage |
−0.3 to Vcc+0.3 |
V | |
| IOUT(ASIC) | Analog output current |
-30 |
mA | |
| Pd | Power dissipation |
2000 |
mW | |
| Kt | Thermal derating |
20.0 |
mW/°C | |
| Topr | Operating temperature |
-20to+70 |
| |
| Tstg | Storage temperature |
-40to+125 |
|
M65582AMF-XXXFP Features
• 1package solution with TV baseband signals (Video and Chroma) processor, deflection and 8bit MCU
• High quality picture by 2 Dimension Adaptive Y/C Separation of 3 Line type
• Built-in VM (Velocity Modulation) circuit emphasizing the picture outline by the changing of the Scanning Speed
• Built-in the correction circuits of the picture distortion which is EAST-WEST function etc. for Flat TV
• Available to use the software for best saled MCU M37272
• Available to input External Video signal, S Video signal and Component Video signal
• High performance OSD function with CCD and Half Tone Display
• Analog Video Switch with 5 Video Inputs Composite Video : 3ch, S Video : 1ch, Component Video : 1ch
• Built-in a high performance Blackstrech
• Built-in YNR
• Built-in 8bit MCU core M37272
ROM : 60Kbyte, RAM : 2048byte
• High quality picture by 2 Dimension Adaptive Y/C Separation of 3 Line type
• Built-in VM (Velocity Modulation) circuit emphasizing the picture outline by the changing of the Scanning Speed
• Built-in the correction circuits of the picture distortion which is EAST-WEST function etc. for Flat TV
• Available to use the software for best saled MCU M37272
• Available to input External Video signal, S Video signal and Component Video signal
• High performance OSD function with CCD and Half Tone Display
• Analog Video Switch with 5 Video Inputs Composite Video : 3ch, S Video : 1ch, Component Video : 1ch
• Built-in a high performance Blackstrech
• Built-in YNR
• Built-in 8bit MCU core M37272
ROM : 60Kbyte, RAM : 2048byte
M65582AMF-XXXFP Typical Application
NTSC color television receivers

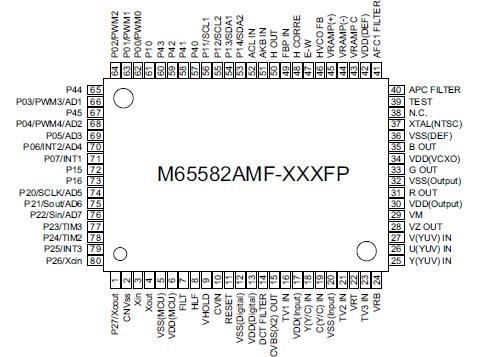

M65582AMF-XXXFP Connection Diagram
M65582AMF-XXXFP
