M65617SP
-
Suppliers
DataSheet
General Description
M65617SP General Description
This system is an NTSC system PinP system that accommodates subscreen composite input and main screen Y/C input. It is a semiconductor IC circuit having a built-in 96K bit field memory and an analog circuit, which permits a low-cost and compact system configuration.
M65617SP Maximum Ratings
|
Symbol |
Parameter |
Limits |
Unit | |
|
Min. |
Max. | |||
| VDD3 | Supply voltage (3.3V) |
-0.3 |
4.6 |
V |
| VI | Input voltage |
-0.3 |
VDD3+0.3 |
V |
| Vo | Output voltage |
-0.3 |
VDD3+0.3 |
V |
| Io | Output current (*1) |
- - |
IOL=20 LOH=-26 |
mA |
| Pd | Power dissipation |
- |
1400 |
mW |
| Topr | Operating temperature |
-10 |
75 |
°C |
| Tstg | Storage temperature |
-50 |
125 |
°C |
M65617SP Features
• Built-in field memory 96K bit for PIP
• Built-in luminance signal vertical filter
• No. of subscreen displays: 1 (two sizes, 1/9 and 1/16, can be selected from.)
• No. of subscreen samples (1/9 - 1/16 sizes)
No. of quantization bits: 6 for all Y, B-Y and R-Y
No. of horizontal picture elements: 171(Y), 28.5 (B-Y, R-Y)
No. of vertical lines: 69/52
• Subscreen frame display ON/OFF
• Built-in analog circuits such as sync chip clamp, VCXO, and analog switch
• Built-in 2 channels of 8 bit A/D converter(for main signal burst lock and PIP sub signal)
• Built-in two channels of 8 bit D/A converter (luminance and chroma signals)
• I2C bus control
Controls: display ON/OFF, display size selection, setting of display position, frame ON/OFF, setting of frame level, selection of frame animation/field still image, setting of Y delay amount,color level, tint, black level, etc.
M65617SP Typical Application
TV

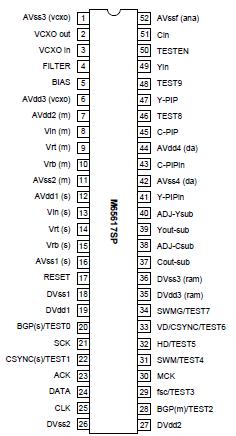

M65617SP Connection Diagram
