Part Number: M65656FP









Description: The M65656FP is an integrated circuit that converts analog VGA inputs directly into NTSC/PAL TV format outputs....


Urgent Purchase

M65656FP General Description


The M65656FP is an integrated circuit that converts analog VGA inputs directly into NTSC/PAL TV format outputs.

This circuit integrates a digital NTSC/PAL encoder with 8bit ADC's and 10bit DAC's.

M65656FP Maximum Ratings

Symbol
Parameter
Limits
Unit
Min.
Max.
VDD3 Supply voltage (3.3V)
-0.3
3.6
V
VI Input voltage
-0.3
VDD3+0.3
V
Vo Output voltage
-0.3
VDD3+0.3
V
Io Output current (*1)

-
-

IOL=20
IOH=-26

mA
Pd Power dissipation
500
mW
Topr Operating temperature
0
75
Tstg Storage temperature
-50
125
*1 : Output current per output terminal. But Pd limits all current.

M65656FP Features

• VGA picture signal to NTSC / PAL signal conversion
• Input Format, 60Hz, 640×480 (Standard VGA format)
• High performance Non-Flicker Filter
• Built-in Line Memories
   Fully integrated with no external memory requirement
• Built-in triple 8bit-A/D converters for RGB
• Built-in triple 10bit-D/A converters for TV signal outputs
• Single +3.3V Power Supply
• I2C Bus Control
• 64pin Flat Package

M65656FP Typical Application

VGA to Video converter Modules
TV, VCR
Mobile PC
Multi-media Systems (Set-Top-Box)

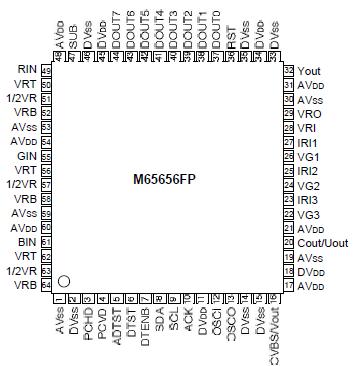

M65656FP Connection Diagram

M65656FP  Connection Diagram

M65656FP datasheet

M65656FP
PDF/DataSheet Download

  • Datasheet: M65656FP
  • File Size: 1498022 KB
  • Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
  • Click here to Download
