M65657FP

Features: • VGA picture signal to NTSC / PAL signal conversion• Input Format, 60Hz, 640´480 (Standard VGA format)• High performance Non-Flicker Filter• Built-in Line Memories Fully integrated with no external memory requirement• Digital input for RGB• Clam...

product image

M65657FP Picture
See larger image
SeekIC No. : 004406809 Detail

M65657FP: Features: • VGA picture signal to NTSC / PAL signal conversion• Input Format, 60Hz, 640´480 (Standard VGA format)• High performance Non-Flicker Filter• Built-in Line Me...

M65657FP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M65657FP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• VGA picture signal to NTSC / PAL signal conversion
• Input Format, 60Hz, 640´480 (Standard VGA format)
• High performance Non-Flicker Filter
• Built-in Line Memories
   Fully integrated with no external memory requirement
• Digital input for RGB
• Clamp pulse output
• Built-in triple 10bit-D/A converters for TV signal outputs
• Single +3.3V Power Supply
• I2C Bus Control
• 64pin Flat Package


Application

VGA to Video converter Modules
TV, VCR
Mobile PC
Multi-media Systems (Set-Top-Box)


Pinout

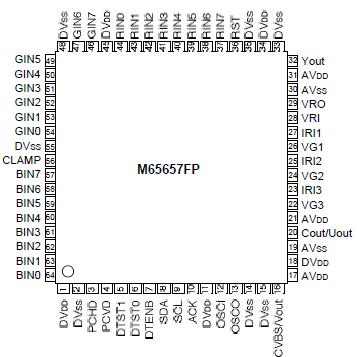

Connection Diagram


Specifications

Symbol Parameter Limits Unit
Min. Max.
VDD3 Supply voltage (3.3V) -0.3 3.6 V
VI Input voltage -0.3 VDD3+0.3 V
VO Output voltage -0.3 VDD3+0.3 V
IO Output current (*1) -
-		 IOL=20
IOH=-26		 mA
Pd Power dissipation   500 mW
Topr Operating temperature 0 75 °C
Tstg Storage temperrature -50 125 °C

*1 : Output current per output terminal. But Pd limits all current.







Description

The M65657FP is an integrated circuit that converts digital VGA inputs directly into NTSC/PAL TV format outputs.


This circuit integrates a digital NTSC/PAL encoder with 10bit DAC's.
