Product Details

Description

Features:

•Non-adjustment EFM-PLL with wide lock-range (built-in VCO)
•Jitter margin ± 8 frames
•Operatable CLV servo command
•Attenuation (-12 dB)
•Built-in 4fs digital filter
•Built-in digital de-emphasis circuit
•Built-in D-A converter
•Compact set by the adoption of a compact package
•Built-in analog LPF
•External D-A mode

Pinout

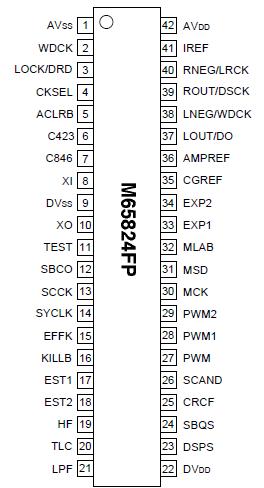

Connection Diagram

Specifications

Symbol	Parameter	Ratings	Unit
DV_DD-DV_SS	Supply voltage (I/O)	-0.3 to +6.5	V
AV_DD-AV_SS	Supply voltage (analog)	-0.3 to +3.6	V
DSPS-DV_SS	Supply voltage (internal circuit)	-0.3 to +3.6	V
V_I	Input voltage	DV_DD-0.3ViDV_DD+0.3	V
Vo	Output voltage	DV_SSVoDV_DD	V
Pd	Power dissipation	350	mW
Topr	Operating temperature	-10 to +70
Tstg	Storage temperature	-40 to +125
