The M65824AFP is a CMOS IC developed for compact disc players.(suitable for CD-DA:Compact Disc-Digital Audio)
It has built-in memory,adjustment-free PLL and D/A converter with DSP function.
M65824AFP Maximum Ratings
|
Symbol |
Item |
Rating
|
Unit |
|
DVDD-DVSS |
Supply voltage(interface) |
-0.3 to+6.5 |
V |
|
AVDD-AVSS |
Supply voltage(analog) |
-0.3 to +3.6 |
V |
|
DSPS-DVSS |
Supply voltage(internal) |
-0.3to+3.6 |
V |
|
Vi |
Input voltage |
DVSS-0.3ViDVDD+0.3 |
V |
|
Vo |
Output voltage |
DVSScVoDVDD |
V |
|
Pd |
Power dissipation |
350
|
mV |
|
Topr |
Operating temperature |
-10 to +70 |
|
|
Tstg |
Storage temperature |
-40 to +125 |
M65824AFP Features
·Adjustment free EFM-PLL circuit(Includes VCO)
·±8 frames jitter margin
·Digital CLV servo control
·Attenuation(-12dB)
·4 times over sampling IIR type digital filter
·Digital de-emphasis function
·D/A converter
·A smaller package
·Analog LPF
·Digital audio interface
·External D/A mode

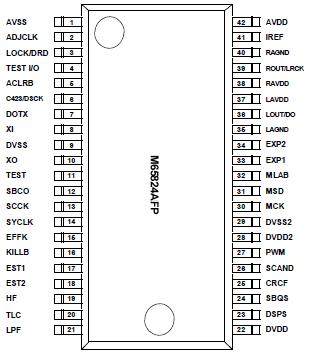

M65824AFP Connection Diagram
