M66221FP

Features: • Memory configuration of 256×9 bits• High-speed access, address access time 40ns (typ.)• Complete asynchronous accessibility from ports A and B• Completely static operation• Built-in port arbitration function• Low power dissipation CMOS design• ...

product image

M66221FP Picture
See larger image
SeekIC No. : 004406863 Detail

M66221FP: Features: • Memory configuration of 256×9 bits• High-speed access, address access time 40ns (typ.)• Complete asynchronous accessibility from ports A and B• Completely static ...

M66221FP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M66221FP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Memory configuration of 256×9 bits
• High-speed access, address access time 40ns (typ.)
• Complete asynchronous accessibility from ports A and B
• Completely static operation
• Built-in port arbitration function
• Low power dissipation CMOS design
• 5V single power supply
• Not Readyoutput pin is provided (open drain output)
• TTL direct-coupled I/O
• 3-state output for I/O pins.


Application

Inter-MPU data transfer memory, buffer memory for image processing system.

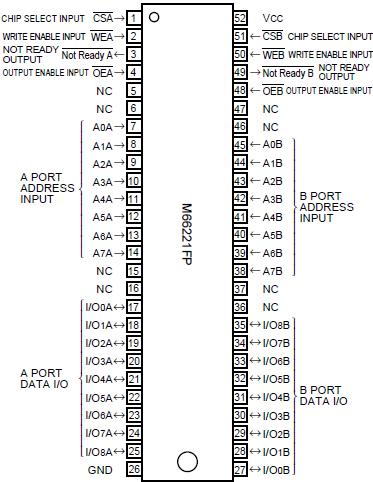

Pinout

Connection Diagram




Specifications

Symbol
Parameter
Conditions
Ratings
Unit
Vcc Supply voltage
 When defining GND pin as a reference.
-0.3to +7.0
V
VI Input voltage
-0.3toVcc+0.3
V
Vo Output voltage
0toVcc
V
Pd Maximum power dissipation Ta = 25 °C
800
mW
Tstg Storage temperature
-65 to +150
°C



Description

The M66221 is a mail box that incorporates a complete CMOS shared memory cell of 256 ´ 9-bit configuration using high-performance silicon gate CMOS process technology, and is equipped with two access
ports of A and B.

Access ports A and B of M66221 are equipped with independent addresses CS,WE and OE control pins and I/O pins to allow independent and asynchronous read/write operations from/to shared memory individually. This product also incorporates a port adjustment arbitration function in address contention from both ports.
