MFG:MITSUBIS Package Cooled:DIP-14 D/C:03+
MFG: MITSUBIS
Package Cooled: DIP-14
D/C: 03+
Description: M66242 Integrated Circuit has four 12-bit PWM (pulse width modulation) circuits which are built by usi...
M66242 Integrated Circuit has four 12-bit PWM (pulse width modulation) circuits which are built by using the CMOS
(complementary metal oxide semiconductor) process.
This IC controls PWM waveform by adjusting the "H" width according to serial data sent from MCU (micro controller unit) or other device. Each channel can be independently controlled.
High-resolution digital-analog converter can be formed easily by connecting a low-pass filter circuit to the output pins of this circuit.
|
Symbol |
Parameter |
Conditions |
Ratings |
Unit |
| Vcc | Supply voltage |
-0.5 to +7.0 |
V | |
| VI | Input voltage |
-0.5 to Vcc+0.5 |
V | |
| Vo | Output voltage | When output is "H" or under high-impedance condition |
-0.5 to Vcc+0.5 |
V |
| IIK | Input protection diode current | VI<0V |
-10 |
mA |
| VI>Vcc |
10 | |||
| IOK | Output parasite diode current | Vo<0V |
-10 |
mA |
| Vo>Vcc |
10 | |||
| Io | Output current |
±15 |
mA | |
| Icc | Supply/GND current |
±40 |
mA | |
| Pd | Power dissipation | Vcc, GND |
150 |
mW |
| Tstg | Storage temperature |
-65 to +150 |
°C |
• Built-in four 12-bit high-resolution pulse width modulation circuits
• Easy digital-analog conversion Quick output waveform smoothing Control by 1.22mV possible per step (VCC =5V)
• Serial data input
• "H" level width setting type
• 4 independently controlled channels
• All 4 channels reset by reset input (R) High-impedance status after reset
• All 4 channels controlled by output control input (OC)
• Settings take effect after ongoing cycle is completed
• Input: TTL level
• Output: CMOS 3-state output
Output current IO = ±4mA
• VCC =5V ± 10%

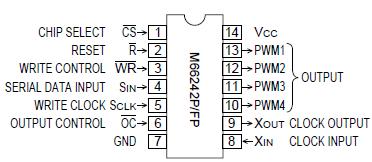

M66242P
