Part Number: M66290FP
Description: The M66290A is a general purpose USB (Univ ersal Serial Bus) dev ice controller compatible with the US...
- Table of contents:
M66290FP
-
Suppliers
DataSheet
General Description
M66290FP General Description
The M66290A is a general purpose USB (Univ ersal Serial Bus) dev ice controller compatible with the USB specif ication version 1.1 and corresponds to f ull speed transf er. Built-in transceiver circuits meet all transf er type which is def ined in USB.
M66290A has FIFO of 3k Bytes f or data transf er and can set 6 endpoints (maximum).
Each endpoint can be set programmable of its transfer condition, so can correspond to each device class transf er
system of USB.
M66290FP Maximum Ratings
|
Symbol |
Parameter |
Ratings |
Unit |
| Vcc | Supply voltage |
-0.3 to +4.2 |
V |
| VI | Input voltage |
-0.3 to VCC+0.3 |
V |
| Vo | Output voltage |
-0.3 to VCC+0.3 |
V |
| Io | Output current |
±20 |
mA |
| Pd | Power dissipation |
400 |
mW |
| Tstg | Storage temperature |
-55 to +150 |
C |
M66290FP Features
· USB specif ication 1.1 compliant
· Built-in USB transceiv er circuit
· Supports Full Speed (12 Mbps) transmission
· Supports all f our USB transf er type :
1. Control transf er
2. Bulk transf er
3. Isochronous transf er
4. Interrupt transf er
· Built-in FIFO (3 KBy tes) f or Endpoint
· Up to 6 endpoint (EP0 to EP5) selectable· Data transf er condition selectable f or each Endpoints (EP1 to EP5)
· Data transf er type(Bulk, Isochronous and Interrupt)
· Transf er direction (IN/OUT)
· Buf f er size of FIFO (maximum 1024 Bytes)
· Double (Toggle) buf f er conf iguration
· Continuous transf er mode(Buf f ering up to 1 KByteX2)
· Max packet size
· Supports 4 input clock f requencies
· Input clock : 6/12/24/48 MHz
· Built-in PLL which has an oscillation buffer and outputs at 48 MHz
· Supports both 8-bit and 16-bit DMA transf ers
· 16-bit CPU bus interf ace
· 3.3V single power source
· Built-in JTAG
· Built-in USB transceiv er circuit
· Supports Full Speed (12 Mbps) transmission
· Supports all f our USB transf er type :
1. Control transf er
2. Bulk transf er
3. Isochronous transf er
4. Interrupt transf er
· Built-in FIFO (3 KBy tes) f or Endpoint
· Up to 6 endpoint (EP0 to EP5) selectable· Data transf er condition selectable f or each Endpoints (EP1 to EP5)
· Data transf er type(Bulk, Isochronous and Interrupt)
· Transf er direction (IN/OUT)
· Buf f er size of FIFO (maximum 1024 Bytes)
· Double (Toggle) buf f er conf iguration
· Continuous transf er mode(Buf f ering up to 1 KByteX2)
· Max packet size
· Supports 4 input clock f requencies
· Input clock : 6/12/24/48 MHz
· Built-in PLL which has an oscillation buffer and outputs at 48 MHz
· Supports both 8-bit and 16-bit DMA transf ers
· 16-bit CPU bus interf ace
· 3.3V single power source
· Built-in JTAG
M66290FP Typical Application
· Printer , Scanner , DSC , DVC
· PC camera , Multimedia speaker , Terminal adapter etc.
· Support all PC peripheral using Full Speed USB
· PC camera , Multimedia speaker , Terminal adapter etc.
· Support all PC peripheral using Full Speed USB

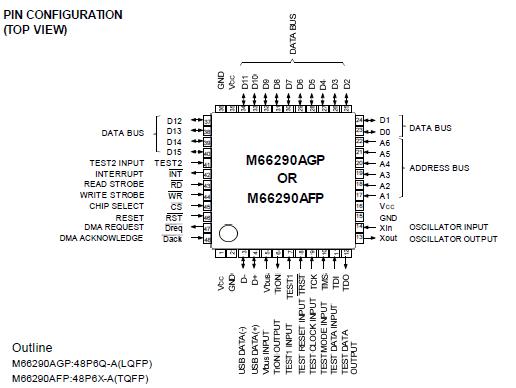

M66290FP Connection Diagram
M660
PDF/DataSheet Download
- Datasheet: M660
- File Size: 60756 KB
- Manufacturer: ICST [Integrated Circuit Systems]
- Click here to Download
- ·M660-01
- ICST [Integrated Circuit Systems]
- Voltage Controlled SAW Oscillator
- 565467 KB
- ·M660-01-BA
- ICST [Integrated Circuit Systems]
- Voltage Controlled SAW Oscillator
- 565467 KB
- ·M660-01-BB
- ICST [Integrated Circuit Systems]
- Voltage Controlled SAW Oscillator
- 565467 KB
- ·M660-01-BC
- ICST [Integrated Circuit Systems]
- Voltage Controlled SAW Oscillator
- 565467 KB
- ·M660-01-BD
- ICST [Integrated Circuit Systems]
- Voltage Controlled SAW Oscillator
- 565467 KB
- ·M660-01-BE
- ICST [Integrated Circuit Systems]
- Voltage Controlled SAW Oscillator
- 565467 KB
- ·M660-01-BF
- ICST [Integrated Circuit Systems]
- Voltage Controlled SAW Oscillator
- 565467 KB
- ·M660-01-BG
- ICST [Integrated Circuit Systems]
- Voltage Controlled SAW Oscillator
- 565467 KB
