Part Number: M66512FP
MFG: MIT
Description: The M66512 is a semiconductor laser-diode driver for driving a specific type* of semiconductor laser, ...
- Table of contents:
M66512FP
-
Suppliers
DataSheet
General Description
M66512FP General Description
The M66512 is a semiconductor laser-diode driver for driving a specific type* of semiconductor laser, in which the anode of a semiconductor laser diode is connected in stem structure to the cathode of a monitoring photodiode.
The amplitude of laser drive current is set by applying a voltage from an external source. the M66512 is capable of driving laser diodes on a maximum current of 120 mA.It operates on a 5-V single power supply and switches laser
drive current at a rate of 40 Mbit/s.
*: The N type of Mitsubishi's semiconductor lasers.
M66512FP Maximum Ratings
|
Symbol |
Parameter |
Conditions |
Ratings |
Unit | |
| Vcc | Supply voltage |
0.5 ~ +7.0 |
V | ||
| VI | Input voltage | VL1,VL2 |
0.3 ~ Vcc |
V | |
| DATA,VOFF |
0.3 ~ + 7 | ||||
| Vo | Output voltage | CO | Output: "H" |
0.3 ~ + 5.5 |
V |
| RO |
0.3 ~ + 7 | ||||
| IL1 | Output current1 |
90 |
mA | ||
| IL2 | Output current2 |
45 |
mA | ||
| IL3 | Output current3 |
45 |
mA | ||
| Pd | Power dissipation | DIP | For single integrated circuit; Ta=25°C (Note 1) |
1300 |
mW |
| SOP | IC Measured being mounted; Ta=25°C (Note 2) |
1200 | |||
| Tstg | Storage temperature |
65 ~ 150 |
°C | ||
2: For operation above 25°C free-air temperature, derating of 9.6mW/°C is necessary.
M66512FP Features
• Two kinds of outputs for monitoring laser power built in.(comparator output and analog output)
• Pin provided for forced OFF of current circuit.
• High speed switching (40 Mbit/s)
• Large drive current (120mA max.)
• 5V single power supply
• Pin provided for forced OFF of current circuit.
• High speed switching (40 Mbit/s)
• Large drive current (120mA max.)
• 5V single power supply
M66512FP Typical Application
Laser beam printers

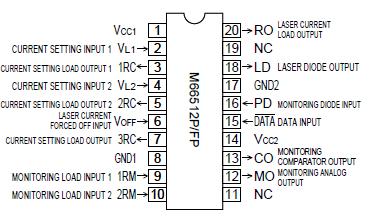

M66512FP Connection Diagram
M66512FP
PDF/DataSheet Download
- Datasheet: M66512FP
- File Size: 147156 KB
- Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
- Click here to Download
