Part Number: M66701P
Description: M66701P Semiconductor Integrated Circuit is built in facsimiles and photocopiers to drive CCD linear i...
- Table of contents:
M66701P
-
Suppliers
DataSheet
General Description
M66701P General Description
M66701P Semiconductor Integrated Circuit is built in facsimiles and photocopiers to drive CCD linear image sensor data transfer clocks at high speeds. Because this IC takes in data on the TTL (transistor-transistor logic) level, it can be driven directly by a TTL integrated circuit.
M66701P Maximum Ratings
| Symbol |
Parameter |
Conditions |
Ratings |
Unit |
| Vcc | Supply voltage |
-0.5to+15 |
V | |
| VI | Input voltage |
-0.5to+15 |
V | |
| VO | Output voltage | Output: "H" |
VCC |
V |
| Pd | Power dissipation | For single integrated circuit; Ta = 25°C (Note 1) |
950 |
mW |
| Tstg | Storage Temperature |
-65to+150 |
M66701P Features
Wide operating voltage range VCC = 8V~13.2V
M66701P Typical Application
Driving of CCD image sensors in facsimiles, image scanners and photocopiers

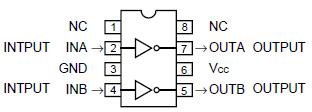

M66701P Connection Diagram
M66701P
PDF/DataSheet Download
- Datasheet: M66701P
- File Size: 70246 KB
- Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
- Click here to Download
