Part Number: M67206E
Description: The M67206E implements a first-in first-out algorithm, eaturing asynchronous read/write operations. The FULL nd EMPTY f...
- Table of contents:
M67206E
-
Suppliers
DataSheet
General Description
M67206E General Description
The M67206E implements a first-in first-out algorithm, eaturing asynchronous read/write operations. The FULL nd EMPTY flags prevent data overflow and underflow. he Expansion logic allows unlimited expansion in word ize and depth with no timing penalties. Twin address ointers automatically generate internal read and write ddresses, and no external address information are equired for the TEMIC FIFOs. Address pointers are utomatically incremented with the write pin and read in. The 9 bits wide data are used in data communications pplications where a parity bit for error checking is ecessary. The Retransmit pin reset the Read pointer to ero without affecting the write pointer. This is very seful for retransmitting data when an error is detected in he system.
Using an array of eight transistors (8 T) memory cell, the 67206E combine an extremely low standby supply urrent (typ = 0.1 A) with a fast access time at 15 ns ver the full temperature range. All versions offer battery ackup data retention capability with a typical power onsumption at less than 2 W.
The M67206E is processed according to the methods of he latest revision of the MIL STD 883 (class B or S), ESA CC 9000 or QML.
M67206E Maximum Ratings
Supply voltage (VCC GND) . . . . . . . . . . . . . . . . . . 0.3 V to 7.0 V
Input or Output voltage applied : . . . . . . . . . . . . . . (GND 0.3 V) to (Vcc + 0.3 V)
Storage temperature : . . . . . . . . . . . . . . . . . . . . . . 65 to + 150
Input or Output voltage applied : . . . . . . . . . . . . . . (GND 0.3 V) to (Vcc + 0.3 V)
Storage temperature : . . . . . . . . . . . . . . . . . . . . . . 65 to + 150
| OPERATING RANGE | OPERATING SUPPLY VOLTAGE | OPERATING TEMPERATURE |
| Military | Vcc = 5 V ± 10 % | 55 to + 125 |
M67206E Features
First-in first-out dual port memory
16384 * 9 organisation
Fast Flag and access times: 15, 30 ns
Wide temperature range : 55 °C to + 125 °C
Fully expandable by word width or depth
Asynchronous read/write operations
Empty, full and half flags in single device mode
Retransmit capability
Bi-directional applications
Battery back-up operation : 2 V data retention
TTL compatible
Single 5 V ± 10 % power supply
High Performance SCMOS Technology
16384 * 9 organisation
Fast Flag and access times: 15, 30 ns
Wide temperature range : 55 °C to + 125 °C
Fully expandable by word width or depth
Asynchronous read/write operations
Empty, full and half flags in single device mode
Retransmit capability
Bi-directional applications
Battery back-up operation : 2 V data retention
TTL compatible
Single 5 V ± 10 % power supply
High Performance SCMOS Technology

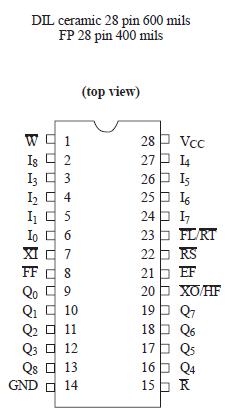

M67206E Connection Diagram
M67206E
