General Description
M68AW256DL General Description
The M68AW256DL is a 4 Mbit (4,194,304 bit) CMOS SRAM, organized as 262,144 words by 16 bits. The device features fully static operation requiring no external clocks or timing strobes, with equal address access and cycle times. It requires a single 2.7 to 3.6V supply.
This device has an automatic power-down feature, reducing the power consumption by over 99% when deselected. The M68AW256DL is available in TFBGA48 (0.75 mmpitch) and in TSOP44 Type II packages.
M68AW256DL Maximum Ratings
| Symbol | Parameter |
Value |
Unit |
| IO(1) TA TSTG VCC VIO(2) PD |
Output Current Ambient Operating Temperature Storage Temperature Supply Voltage Input or Output Voltage Power Dissipation |
20 55 to 125 65 to 150 0.5 to 4.6 0.5 to VCC +0.5 1 |
mA °C °C V V W |
2. Up to a maximum operating VCC of 3.6V only.
M68AW256DL Features
·SUPPLY VOLTAGE: 2.7 to 3.6V
·256K x 16 bits SRAM with OUTPUT ENABLE
·EQUAL CYCLE and ACCESS TIME: 55ns
·SINGLE BYTE READ/WRITE
·LOW STANDBY CURRENT
·LOW VCC DATA RETENTION: 1.5V
·TRI-STATE COMMON I/O
·AUTOMATIC POWER DOWN
·DUAL CHIP ENABLE for EASY DEPTH EXPANSION
·256K x 16 bits SRAM with OUTPUT ENABLE
·EQUAL CYCLE and ACCESS TIME: 55ns
·SINGLE BYTE READ/WRITE
·LOW STANDBY CURRENT
·LOW VCC DATA RETENTION: 1.5V
·TRI-STATE COMMON I/O
·AUTOMATIC POWER DOWN
·DUAL CHIP ENABLE for EASY DEPTH EXPANSION

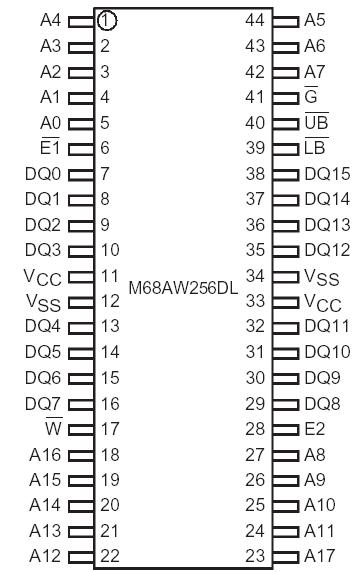

M68AW256DL Connection Diagram
M68AW256DL70ND1T
PDF/DataSheet Download
- Datasheet: M68AW256DL70ND1T
- File Size: 118912 KB
- Manufacturer: STMICROELECTRONICS [STMicroelectronics]
- Click here to Download
