General Description
M68AW512M General Description
The M68AW512M is a 8 Mbit (8,388,608 bit) CMOS SRAM, organized as 524,288 words by 16 bits. The device features fully static operation requiring no external clocks or timing strobes, with equal address access and cycle times. It requires a single 2.7 to 3.6V supply. This device has an automatic power-down feature, reducing the power consumption by over 99% when deselected.The M68AW512M is available in TSOP44 Type II packages.
M68AW512M Maximum Ratings
| Symbol | Parameter | Value | Unit |
| IO(1) | Output Current | 20 | mA |
| TA | Ambient Operating Temperature | 55 to 125 | °C |
| TSTG | Storage Temperature | 65 to 150 | °C |
| VCC | Supply Voltage | 0.5 to 4.6 | V |
| VIO(2) | Input or Output Voltage | 0.5 to VCC +0.5 | V |
| PD | Power Dissipation | 1 | W |
M68AW512M Features
SUPPLY VOLTAGE: 2.7 to 3.6V
512K x 16 bits SRAM with OUTPUT ENABLE
EQUAL CYCLE and ACCESS TIME: 55ns
SINGLE BYTE READ/WRITE
LOW STANDBY CURRENT
LOW VCC DATA RETENTION: 1.5V
TRI-STATE COMMON I/O
AUTOMATIC POWER DOWN
512K x 16 bits SRAM with OUTPUT ENABLE
EQUAL CYCLE and ACCESS TIME: 55ns
SINGLE BYTE READ/WRITE
LOW STANDBY CURRENT
LOW VCC DATA RETENTION: 1.5V
TRI-STATE COMMON I/O
AUTOMATIC POWER DOWN

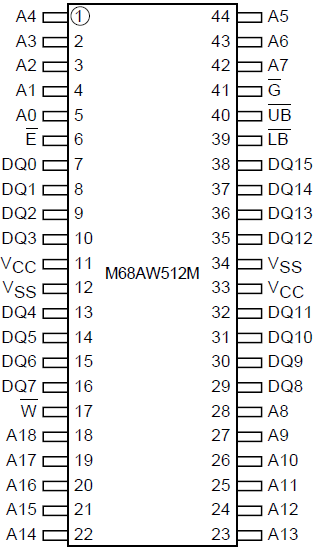

M68AW512M Connection Diagram
